BAFANG UART 48V 1000W Mid Drive Motor Conversion Kit
Upgrade your bicycle with the powerful BAFANG 48V 1000W mid drive motor system, designed for high torque output, efficient power delivery and reliable e-bike conversion.
This configuration includes a 48V 1000W mid-drive motor with UART communication protocol, C18 color display, selectable 42T or 46T chain wheel options, and 68mm / 100mm bottom bracket compatibility.
Main Configuration
• Motor Voltage: 48V
• Motor Power: 1000W
• Communication Protocol: UART
• Controller Current: 48V 30A
• Maximum Torque: 160 N·m
• Efficiency: >80%
• Maximum Speed: 25 km/h
• Motor Weight: Approx. 6.0 kg
• Display: C18 Color Display
• Chain Wheel Options: 42T / 46T
• Bottom Bracket Options: 68mm / 100mm
• Motor Type: Mid Drive Motor
• Application: E-Bike Conversion
C18 Color Display
The C18 display provides a clear and modern riding interface with real-time riding information.
Features:
• Color matrix display
• Voltage compatibility: 34V / 36V / 48V
• Pedal assist level display
• Battery level display
• Real-time speed display
• Distance display
• Light button
• USB charging port
Chain Wheel Options
This product supports two chain wheel options:
42T Chain Wheel
• Suitable for riders who prefer stronger climbing ability and lower-speed torque output.
46T Chain Wheel
• Suitable for balanced riding performance and general riding applications.
Please select the required chain wheel option when ordering.
Bottom Bracket Compatibility
Available bottom bracket sizes:
68mm Version
• Suitable for 68–73mm bicycle bottom brackets.
100mm Version
• Suitable for compatible 100mm bottom bracket bicycles.
Please measure your bicycle bottom bracket width before purchase.
Key Features
• Powerful 48V 1000W mid-drive motor
• Maximum torque up to 160 N·m
• UART communication system
• C18 color display included
• 42T / 46T chain wheel options
• Hydraulic brake sensor compatible
• Balanced mid-drive power delivery
• Suitable for high-performance e-bike conversion
• Multiple bottom bracket options available

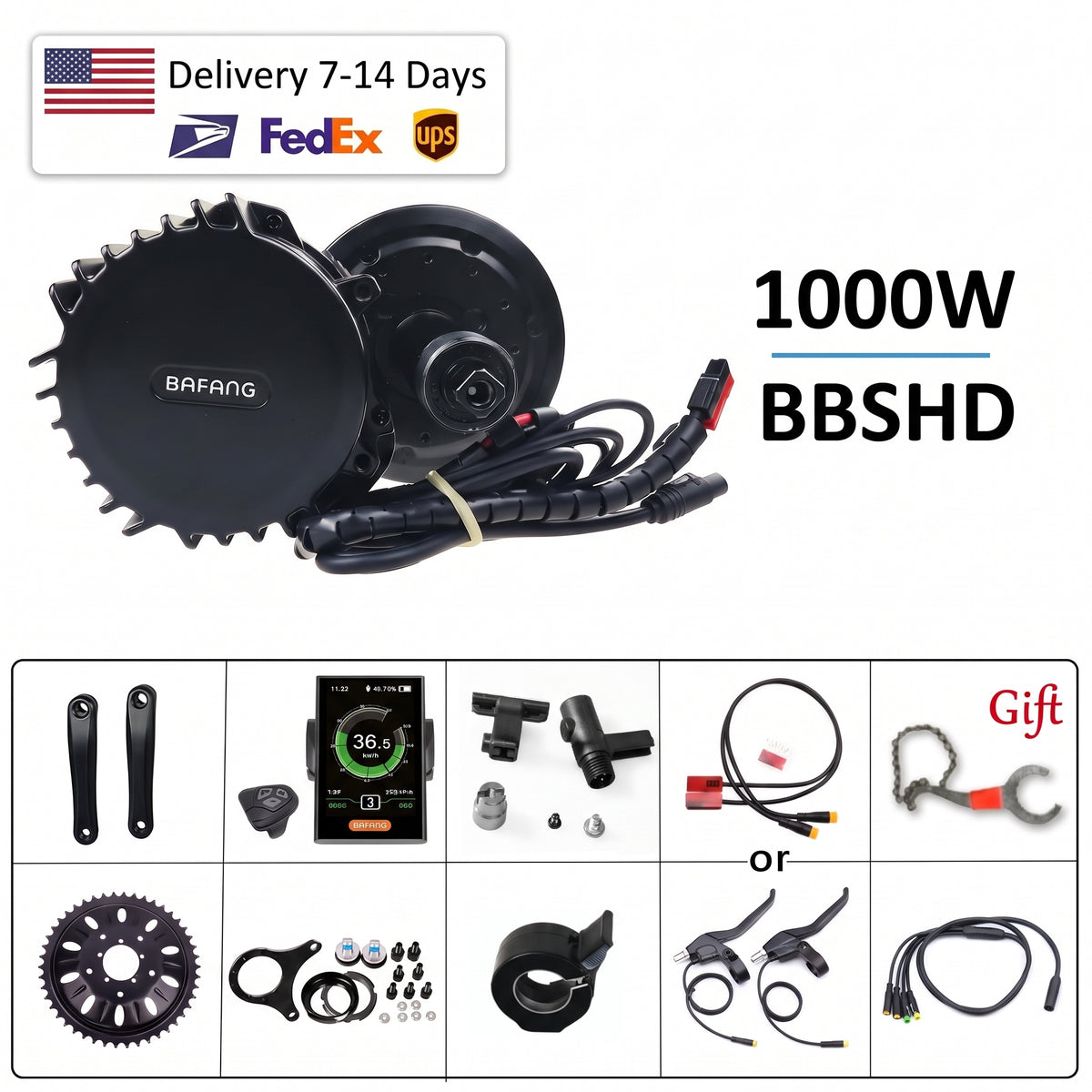

Package Contents
Depending on the selected configuration, the package may include:
• BAFANG 48V 1000W mid-drive motor
• C18 color display
• Selected chain wheel: 42T / 46T
• Crank arms
• Brake sensor
• Thumb throttle
• 1T4 cable
• Speed sensor
• Main wiring cable
• Lock nuts
• Installation tools
• User manual
Important Notes
• This product uses UART communication protocol.
• Battery is not included unless specifically stated.
• Please confirm battery voltage, connector type and bottom bracket size before ordering.
• Please select the correct chain wheel size according to your riding requirements.
• Please confirm whether your bicycle requires 68mm or 100mm bottom bracket version.
• Front light and gear sensor availability depends on the selected package.
• If you are unsure about compatibility, please contact us before ordering.
