BAFANG BBSHD UART 52V 1000W Mid Drive E-Bike Conversion Kit
Convert your compatible bicycle into a powerful electric bike with the BAFANG BBSHD UART 52V 1000W mid-drive motor conversion kit.
This configuration is designed for bicycles with a 120mm bottom bracket and includes a 750C-BLE display and 46T chainring.
Key Features
• BAFANG BBSHD mid-drive motor
• UART communication protocol
• Rated voltage: 52V
• Rated motor power: 1000W
• Bottom bracket size: 120mm
• Display: 750C-BLE
• Chainring: 46T
• Mid-drive design for efficient power transfer
• Compatible with brake cut-off system
• Compatible with thumb throttle
• Compatible with speed sensor
• Gear sensor connection available
• Front light connection available
• Suitable for fat bikes and compatible e-bike conversion projects

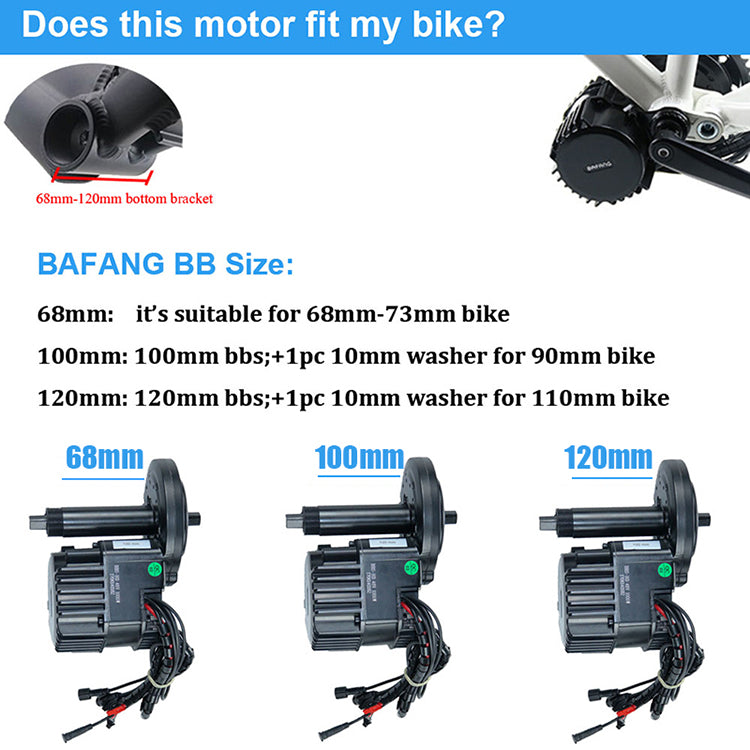

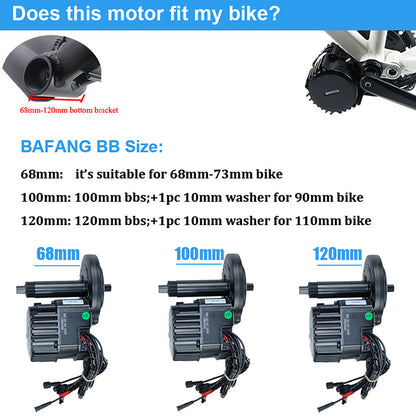

Bottom Bracket Compatibility
120mm Bottom Bracket
• Designed for bicycles with approximately 120mm bottom bracket width
• Suitable for wider fat bike frames
• Please measure your bicycle bottom bracket width and inner diameter before ordering
750C-BLE Display
• Color display
• Bluetooth-enabled display
• Displays riding speed
• Displays battery information
• Displays assist level and riding data
• Compatible with BAFANG UART motor systems
• Easy-to-read interface for daily riding

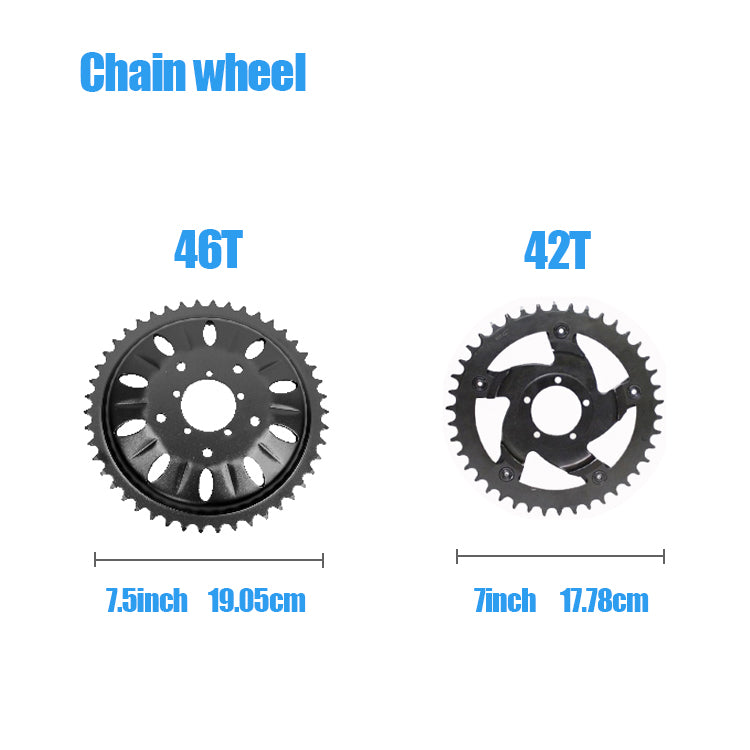

46T Chainring
This kit is configured with a 46T chainring.
The 46T chainring provides efficient pedaling and is suitable for compatible bicycles where a higher gearing setup is preferred.
Connection System
The motor system provides connections for:
• 750C-BLE display
• Thumb throttle
• Brake cut-off system
• Speed sensor
• Gear sensor
• Battery
• Front light
Please confirm all connector types before installation.

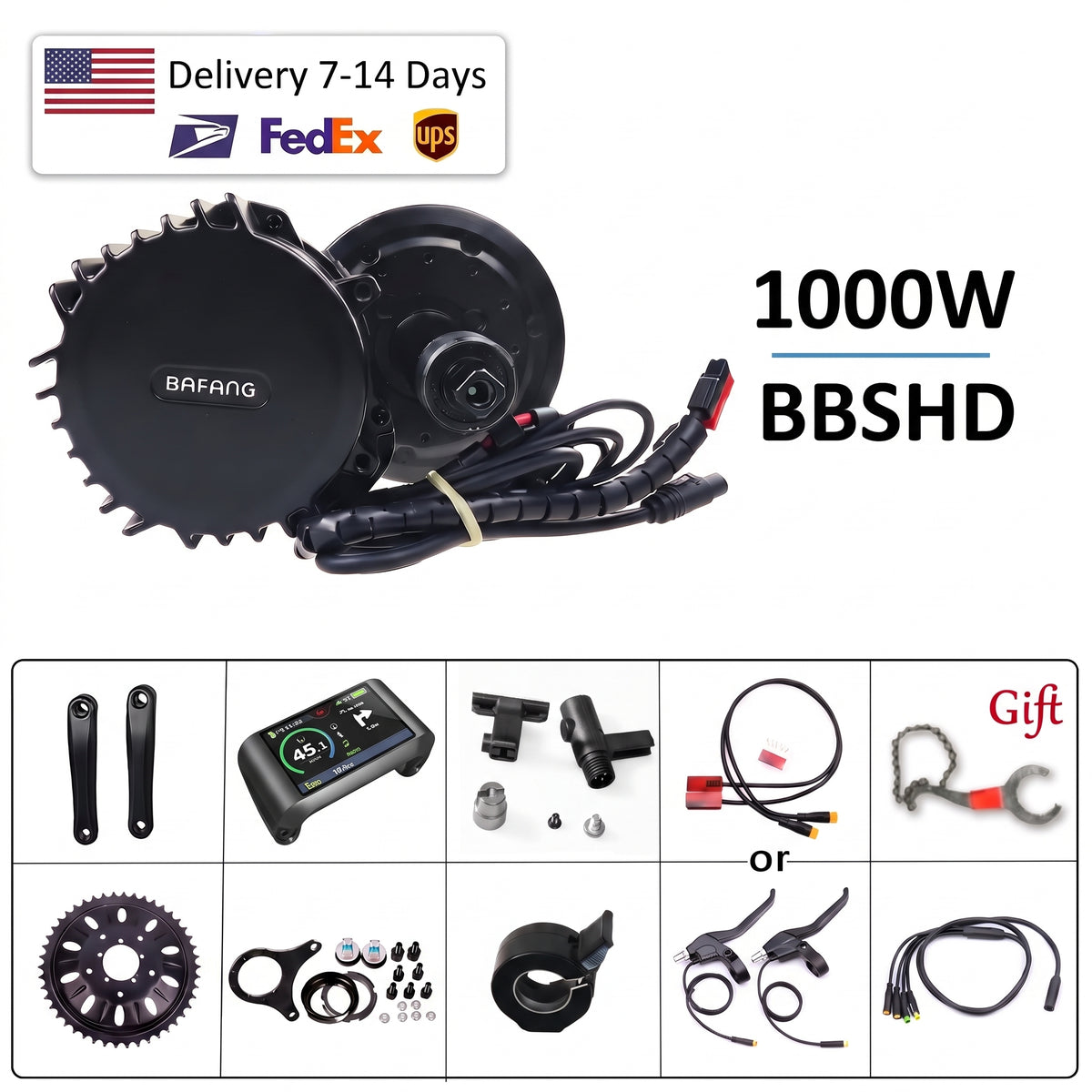

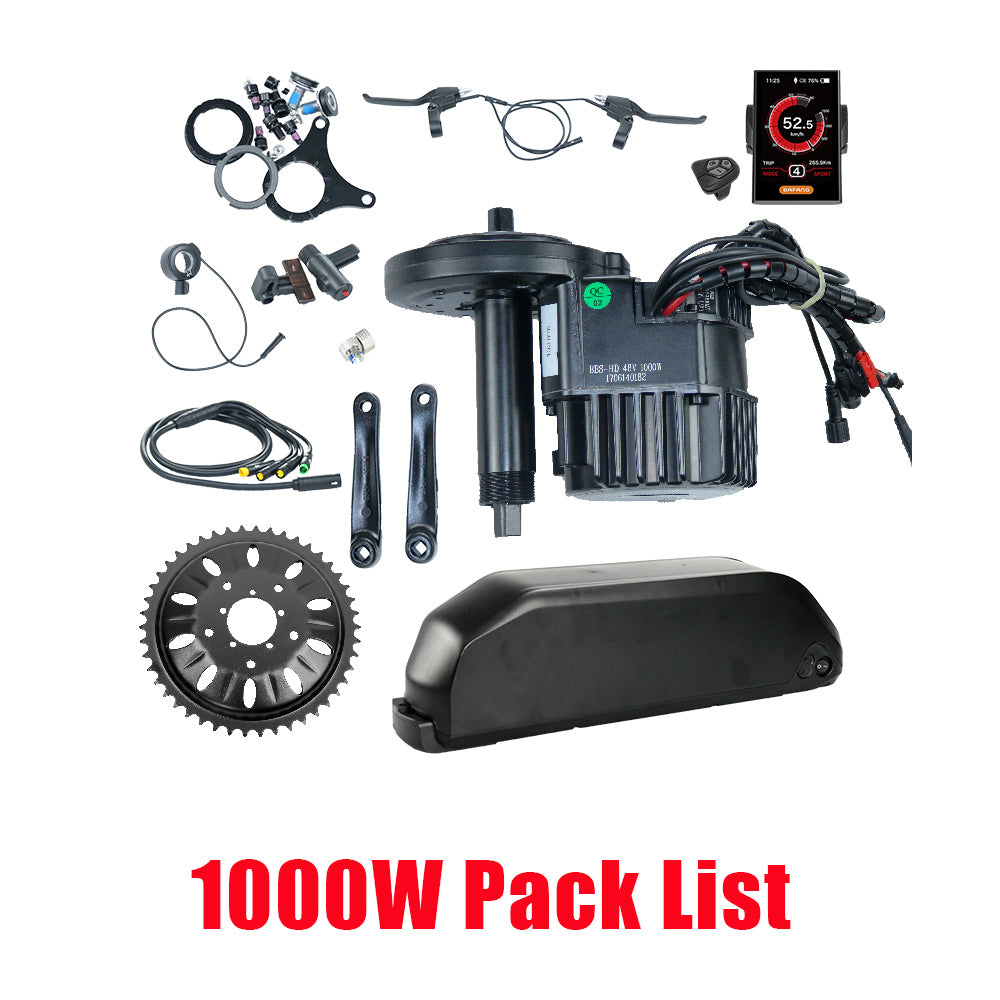

Main Kit Components
Depending on the selected package, the kit may include:
• BAFANG BBSHD 52V 1000W mid-drive motor
• 750C-BLE display
• 46T chainring
• Crank arms
• Brake levers or brake sensors
• Thumb throttle
• Speed sensor
• Main wiring harness
• Mounting hardware
• Installation accessories
Please note:
Battery, front light and gear sensor require additional purchase unless they are specifically included in your selected package.
Cable Connections
The wiring harness provides connections for:
• Main 1T4 cable
• Battery
• Gear sensor
• Speed sensor
• Front light
• Display
• Brake system
• Thumb throttle
Important Compatibility Notice
Before ordering, please confirm:
• Battery voltage: 52V
• Motor power: 1000W
• Bottom bracket width: 120mm
• Bottom bracket inner diameter
• Display: 750C-BLE
• Chainring: 46T
• Bicycle frame clearance
• Battery connector compatibility
• Required brake option
Please measure your bicycle bottom bracket before ordering. Installation compatibility may vary depending on bicycle frame geometry and components.
Installation
Professional installation is recommended if you are not familiar with bicycle electrical systems or bottom bracket installation.
Wholesale & OEM
Wholesale and bulk orders are welcome.
For OEM requirements, customized packages, accessories or bulk purchasing, please contact us before ordering.
