BAFANG UART 48V 1000W Mid Drive Motor Conversion Kit
Upgrade your bicycle with the powerful BAFANG 48V 1000W mid drive motor system, designed for high torque performance, efficient power transfer and reliable e-bike conversion.
This configuration includes a BAFANG UART 48V 1000W mid-drive motor, 860C TFT display, 42T chain wheel, hydraulic brake sensor and 120mm bottom bracket compatibility.
Main Configuration
• Motor Voltage: 48V
• Motor Power: 1000W
• Communication Protocol: UART
• Controller Current: 48V 30A
• Maximum Torque: Up to 160 N·m
• Efficiency: >80%
• Maximum Speed: 25 km/h
• Motor Weight: Approx. 6.0 kg
• Display: 860C TFT Display
• Chain Wheel: 42T
• Brake Type: Hydraulic Brake Sensor
• Bottom Bracket Length: 120mm
• Motor Type: Mid Drive Motor
• Application: E-Bike Conversion
860C TFT Display
The BAFANG 860C display provides a clear riding interface with real-time riding information and easy operation.
Features:
• TFT color screen
• Voltage compatibility: 34V / 36V / 48V / 60V
• Pedal assist level display
• Battery level display
• Speed display
• Distance display
• Light control button
• USB charging port
42T Chain Wheel
This configuration includes a 42T chain wheel.
Specifications:
• Chain Wheel Teeth: 42T
• Designed for balanced torque output and climbing performance
• Suitable for various e-bike conversion applications
120mm Bottom Bracket Compatibility
This motor kit is designed for bicycles with 120mm bottom bracket width.
Before ordering:
• Please measure your bicycle bottom bracket width.
• Confirm that your frame provides enough installation space.
• Check battery voltage and connector compatibility.
Hydraulic Brake Sensor
The hydraulic brake sensor detects braking action and sends a motor cut-off signal.
Features:
• Compatible with hydraulic brake systems
• Provides safer motor control during braking
• Easy installation with compatible brake systems
Key Features
• Powerful 48V 1000W mid-drive motor
• Up to 160 N·m torque output
• UART communication system
• 860C TFT color display
• 42T chain wheel included
• Hydraulic brake sensor support
• 120mm bottom bracket version
• High-performance e-bike conversion solution

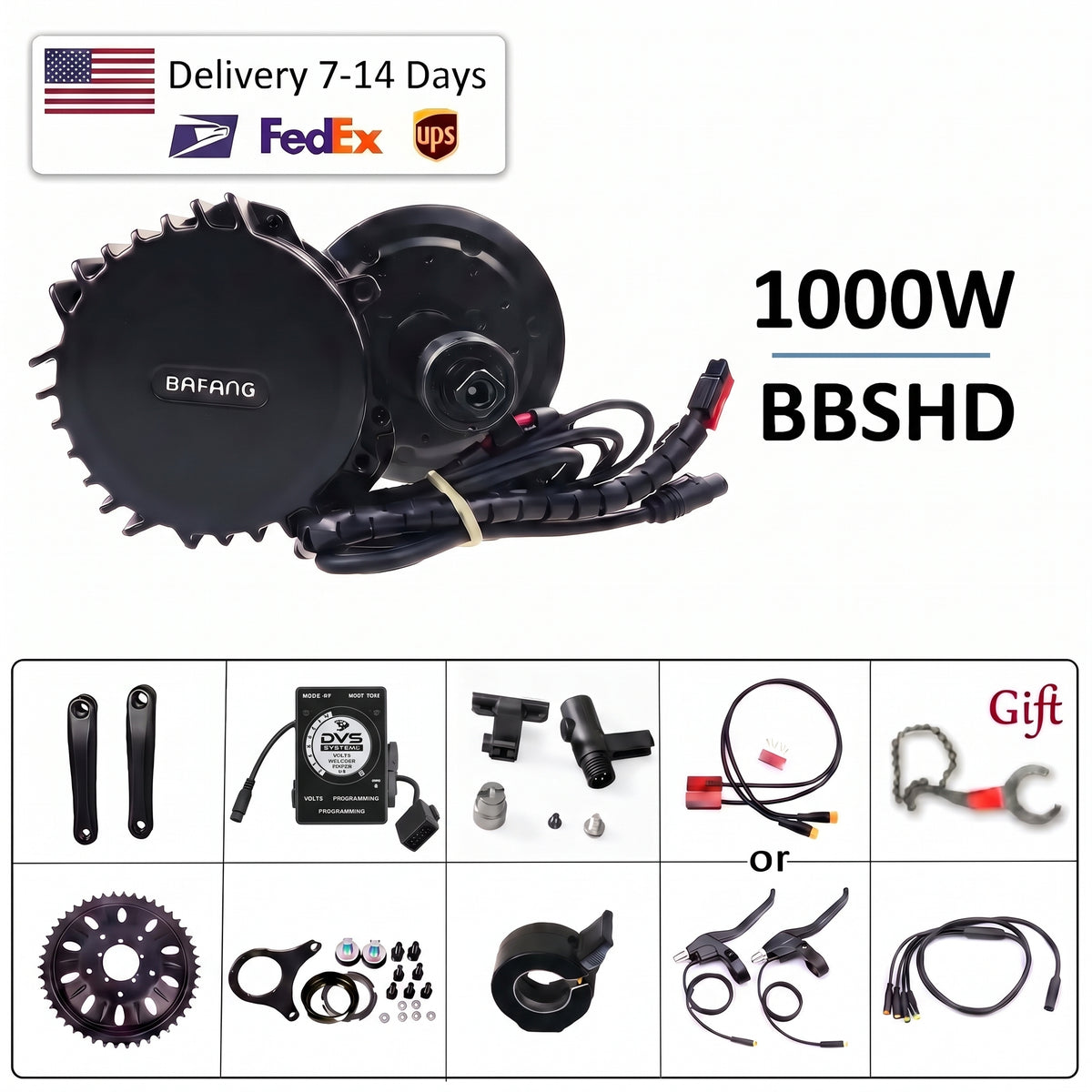

Package Contents
The package may include:
• BAFANG 48V 1000W mid drive motor
• 860C TFT display
• 42T chain wheel
• Crank arms
• Hydraulic brake sensor
• Thumb throttle
• Speed sensor
• 1T4 wiring cable
• Lock nuts
• Installation tools
• User manual
Important Notes
• This product uses UART communication protocol.
• Battery is not included unless specifically stated.
• Please confirm your bicycle bottom bracket size before ordering.
• This version requires a 120mm bottom bracket.
• Please check connector compatibility before installation.
• If you are unsure about compatibility, please contact us before purchase.
