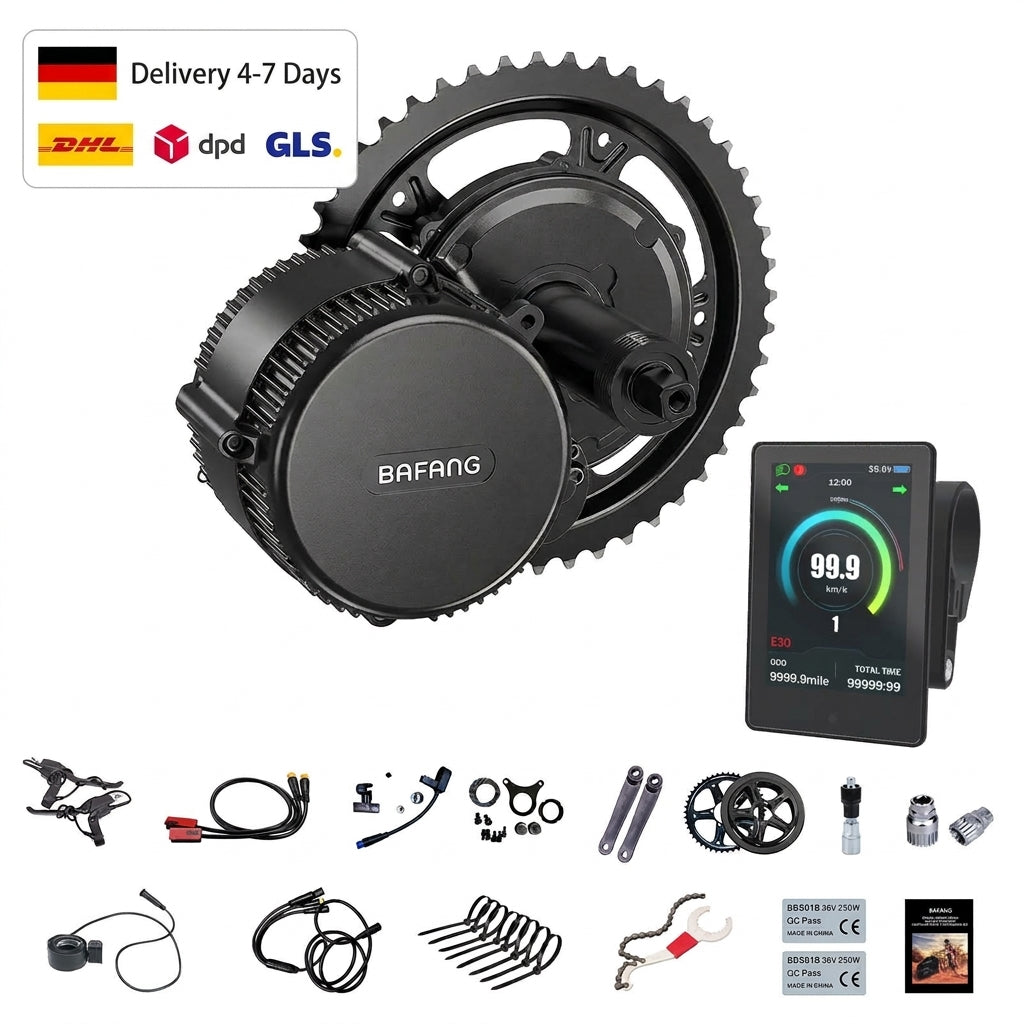

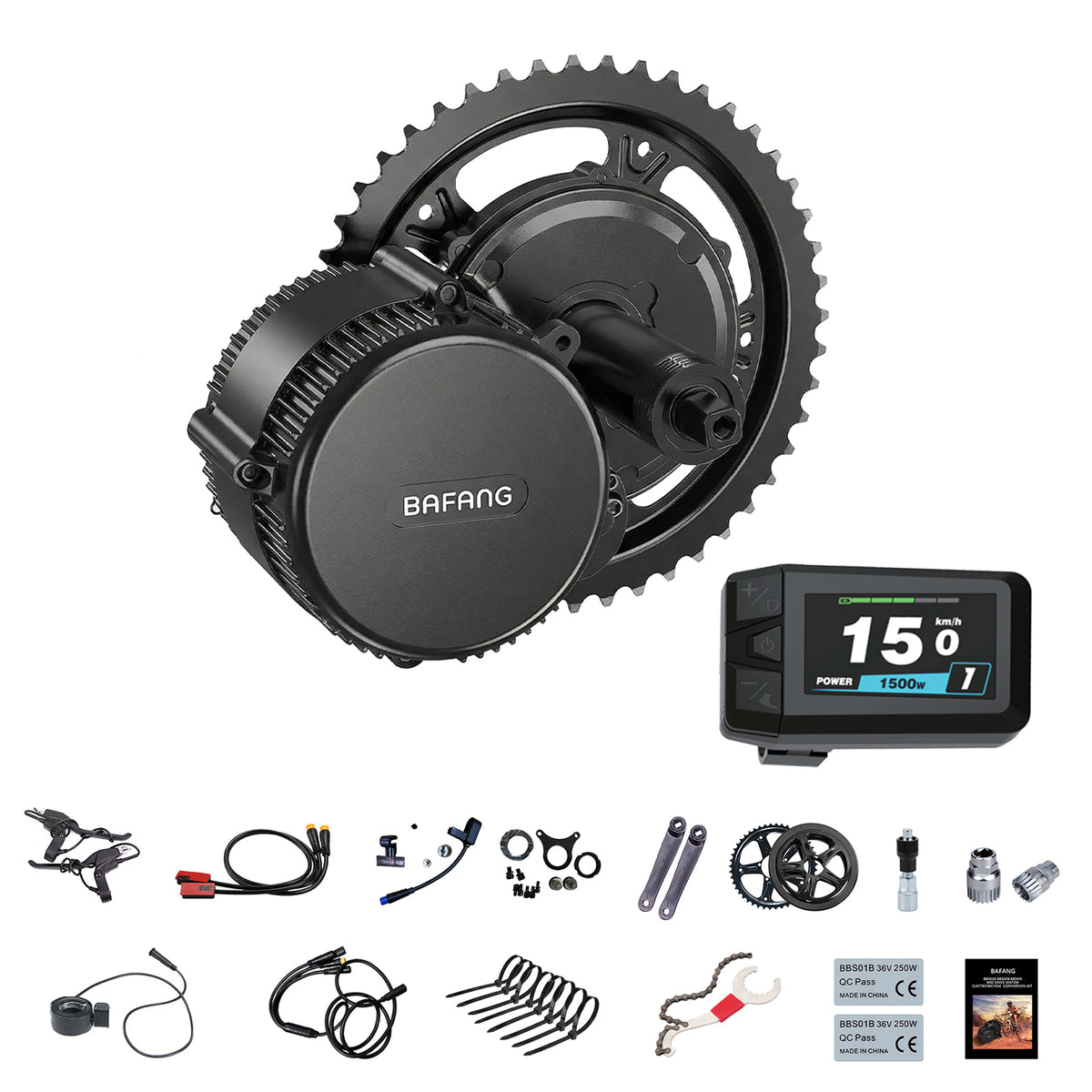

BAFANG Mid Drive Motor Conversion Kit
Upgrade your bicycle with a complete BAFANG mid-drive motor conversion solution. Available in 250W, 500W and 750W versions, this kit is suitable for different riding requirements and can be configured with optional displays and accessories.

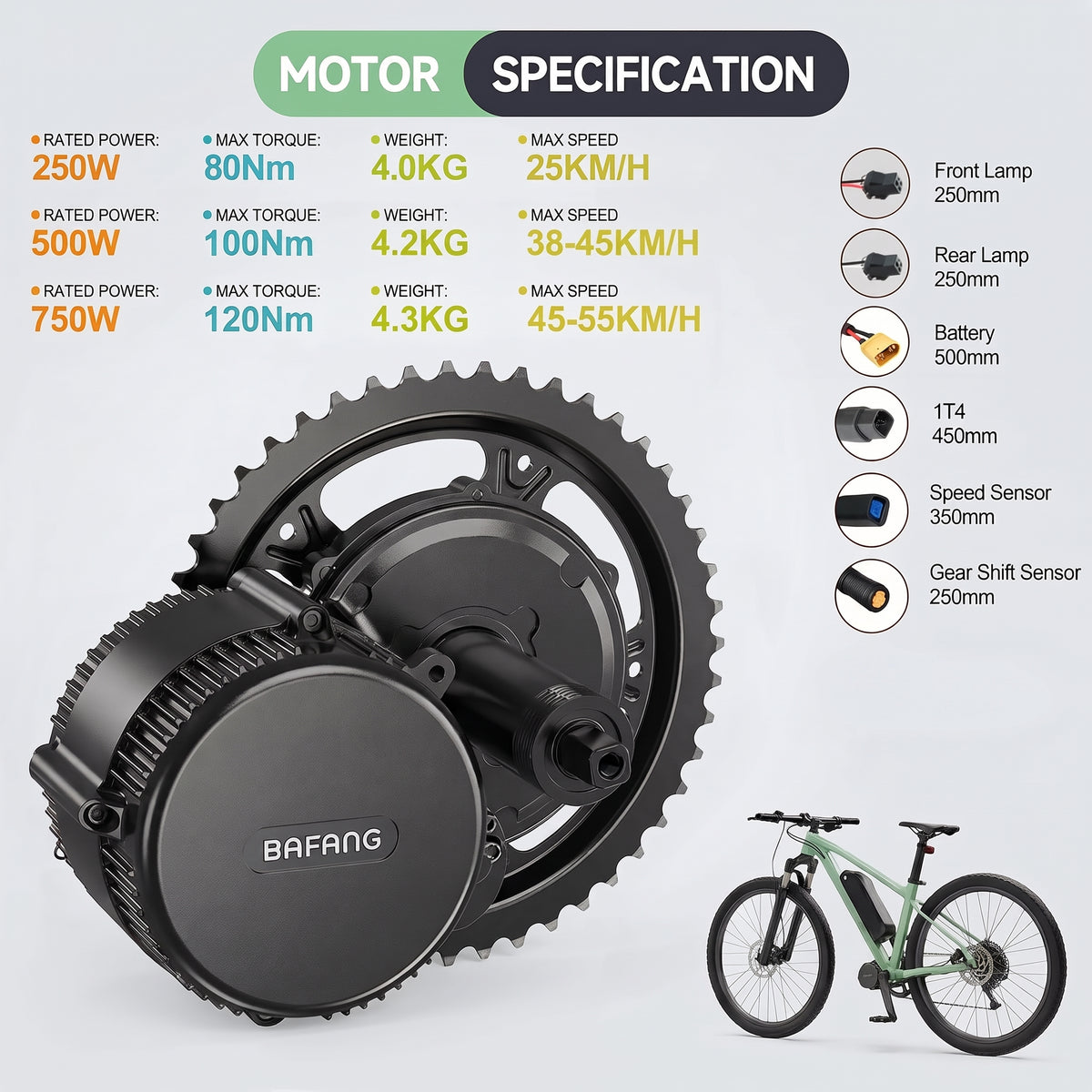

Motor Specifications
250W Version
• Rated Power: 250W
• Max Torque: 80Nm
• Motor Weight: 4.0kg
• Max Speed: 25km/h
500W Version
• Rated Power: 500W
• Max Torque: 100Nm
• Motor Weight: 4.2kg
• Max Speed: 38–45km/h
750W Version
• Rated Power: 750W
• Max Torque: 120Nm
• Motor Weight: 4.3kg
• Max Speed: 45–55km/h
Optional Displays
C010 Display
• 4.0" 480×800 RGB TFT Screen
• IP66 Waterproof
• Applicable Voltage: 36V / 43V / 48V / 50.4V / 60V / 72V
• Operating Temperature: -20°C to 45°C
• Storage Temperature: -20°C to 60°C
• Storage Humidity: 30%–70% RH

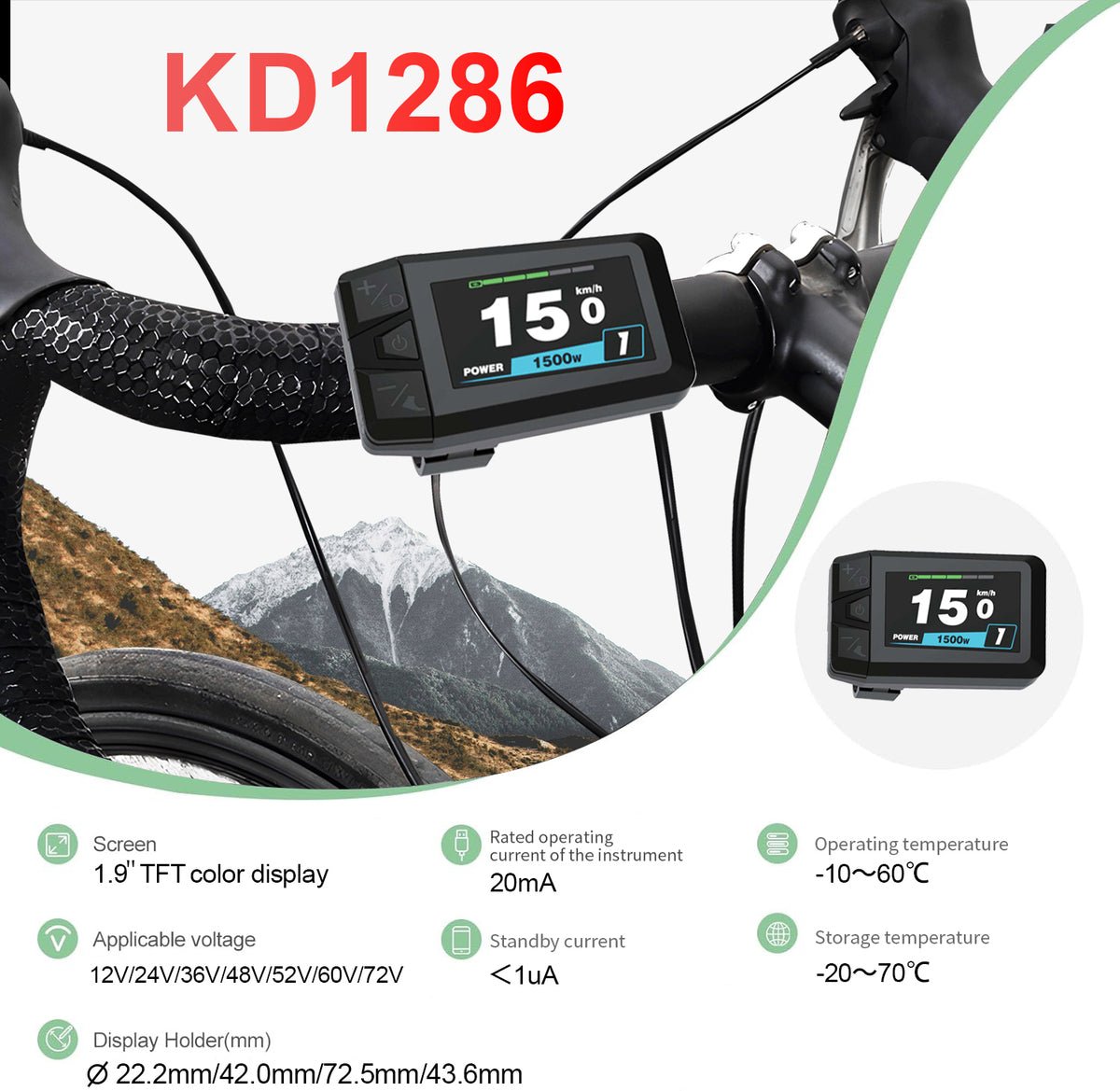

KD1286 Display
• 1.9" TFT Color Display
• Applicable Voltage: 12V / 24V / 36V / 48V / 52V / 60V / 72V
• Rated Operating Current: 20mA
• Standby Current: <1μA
• Operating Temperature: -10°C to 60°C
• Storage Temperature: -20°C to 70°C

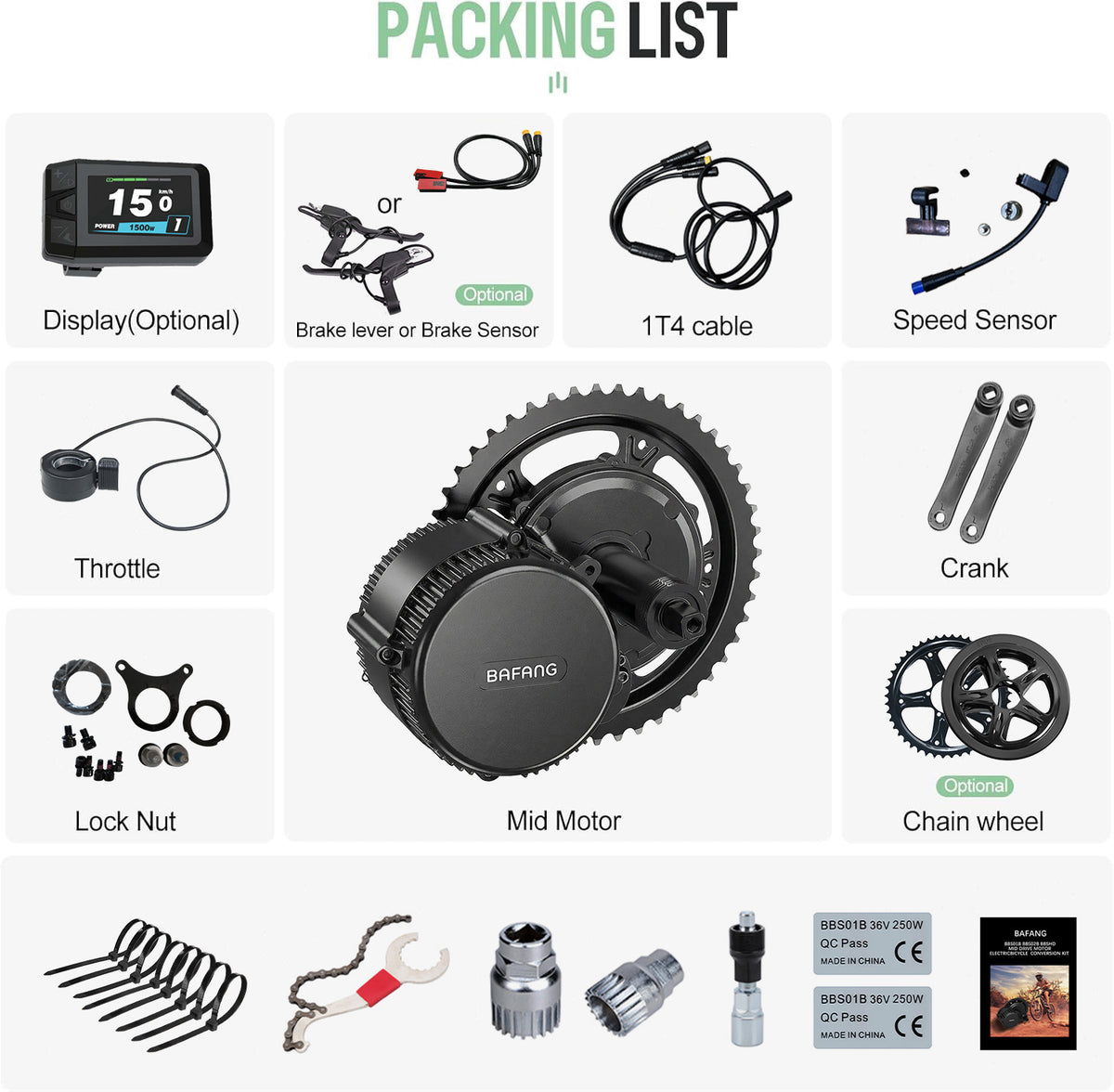

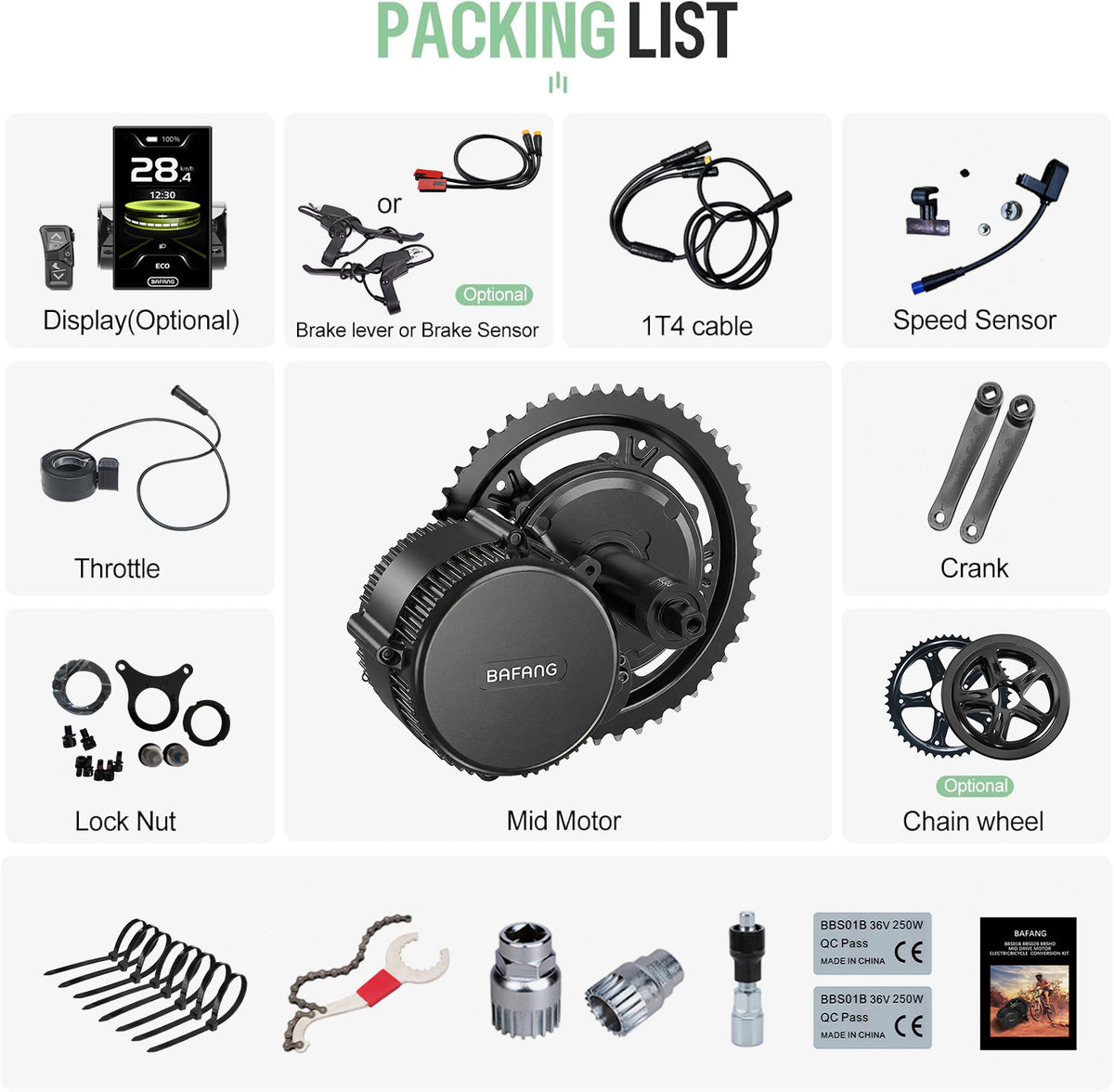

Package / Configuration Options
Depending on the selected configuration, the kit may include:
• BAFANG Mid Drive Motor
• Display (Optional)
• Brake Lever or Brake Sensor (Optional)
• 1T4 Main Cable
• Speed Sensor
• Throttle
• Crank Arms
• Lock Nut Set
• Chain Wheel (Optional)
• Installation Tools
• Cable Ties
• Wiring / Connection Accessories
• Installation Manual
Important Notice
Please confirm the required motor power, display option and accessory configuration before ordering.
The exact package contents depend on the selected configuration. Please refer to the selected variant and order details for the final package contents.
For bulk orders, OEM/ODM requirements or special configurations, please contact us for a quotation.
