BAFANG BBSHD UART 48V 1000W Mid Drive E-Bike Conversion Kit
Convert your compatible bicycle into a powerful electric bike with the BAFANG BBSHD UART 48V 1000W mid-drive motor conversion kit.
This configuration is designed for bicycles with 100mm or 120mm bottom brackets and includes a 46T chainring and 860C color display.
Key Features
• BAFANG BBSHD mid-drive motor
• UART communication protocol
• Rated voltage: 48V
• Rated motor power: 1000W
• Bottom bracket options: 100mm / 120mm
• Chainring: 46T
• Display: 860C
• Mid-drive design for efficient power transfer
• Compatible with brake cut-off sensors
• Compatible with thumb throttle
• Compatible with speed sensor
• Gear sensor connection available
• Front light connection available
• Suitable for fat bikes and compatible e-bike conversion projects
Bottom Bracket Compatibility
100mm Bottom Bracket
• Designed for bicycles with approximately 100mm bottom bracket width
• Suitable for many fat bike frames
• Please measure your bicycle bottom bracket before ordering
120mm Bottom Bracket
• Designed for bicycles with approximately 120mm bottom bracket width
• Suitable for wider fat bike frames
• Please measure your bicycle bottom bracket before ordering
860C Display
• Color display
• Displays riding speed
• Displays battery information
• Displays riding data
• Compatible with the BAFANG UART motor system
• Easy-to-read interface for daily riding
46T Chainring
This kit is supplied with a 46T chainring.
The 46T chainring provides efficient pedaling and is suitable for riders who prefer a higher gearing setup on compatible bicycles.
Connection System
The motor system supports connections for:
• 860C display
• Thumb throttle
• Brake cut-off sensors
• Speed sensor
• Gear sensor
• Battery
• Front light

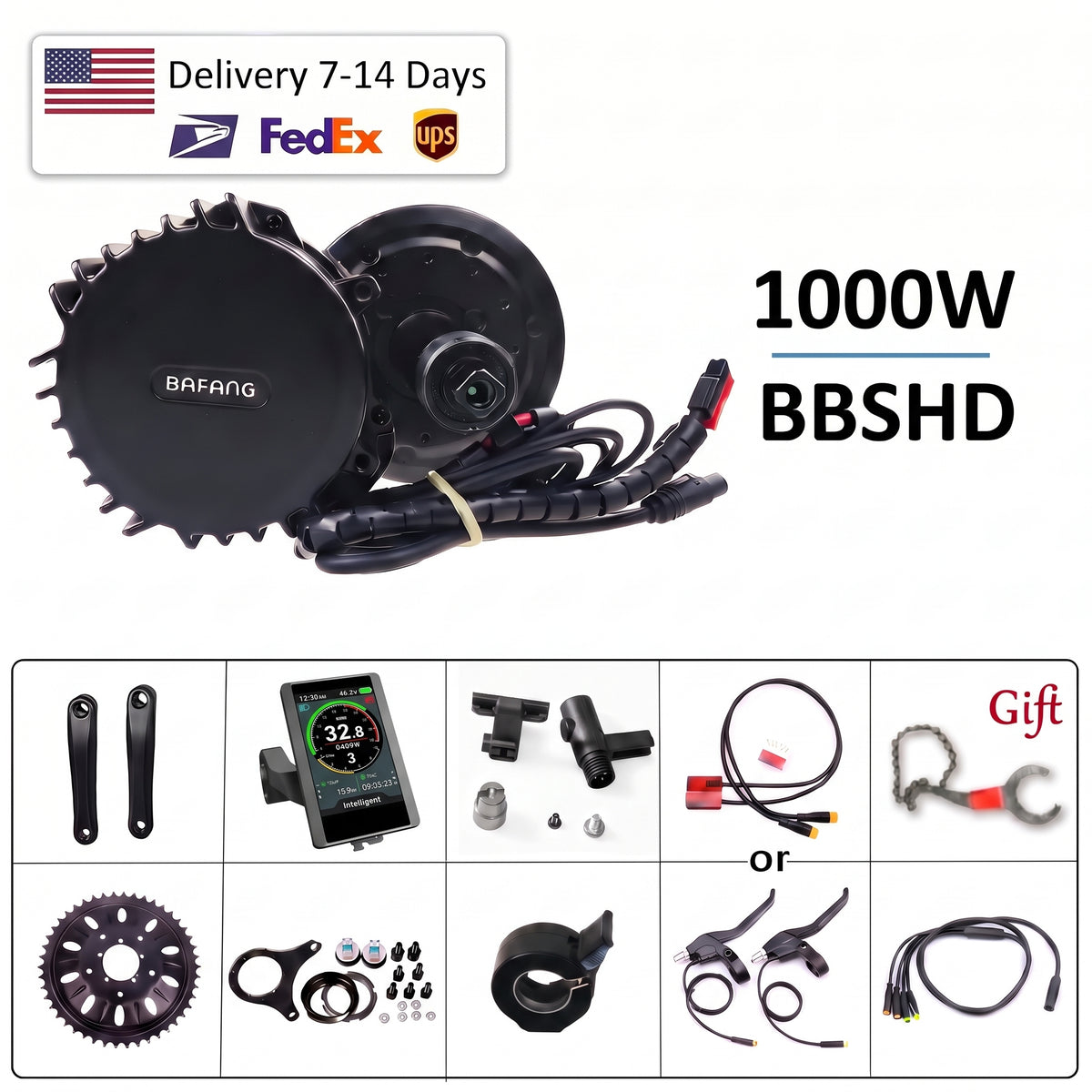

Main Kit Components
Depending on the selected configuration, the kit may include:
• BAFANG BBSHD 48V 1000W mid-drive motor
• 860C color display
• 46T chainring
• Crank arms
• Brake sensors
• Thumb throttle
• Speed sensor
• Main wiring harness
• Mounting hardware
• Installation accessories
Battery, front light and gear sensor are not included unless specifically stated in the selected package.
Cable Connections
The wiring system provides connections for:
• Main wiring harness
• Battery
• Gear sensor
• Speed sensor
• Front light
• 860C display
• Brake sensors
• Thumb throttle
Important Compatibility Notice
Before ordering, please confirm:
• Battery voltage: 48V
• Motor power: 1000W
• Bottom bracket width: 100mm or 120mm
• Bottom bracket inner diameter
• Display: 860C
• Chainring: 46T
• Bicycle frame clearance
• Battery connector compatibility
Please measure your bicycle bottom bracket before ordering. Installation compatibility may vary depending on bicycle frame geometry.
Installation
Professional installation is recommended if you are not familiar with bicycle electrical systems or bottom bracket installation.
Wholesale & OEM
Wholesale and bulk orders are welcome.
For OEM requirements, customized packages, accessories or bulk purchasing, please contact us before ordering.
