BAFANG 48V 750W Mid Drive Motor Conversion Kit
Upgrade your bicycle with the BAFANG 48V 750W mid-drive motor system, designed to deliver powerful torque, high efficiency and responsive riding performance.
Equipped with the KD1286 TFT display, this conversion kit provides clear riding information including real-time speed, battery status, mileage and pedal assist level.

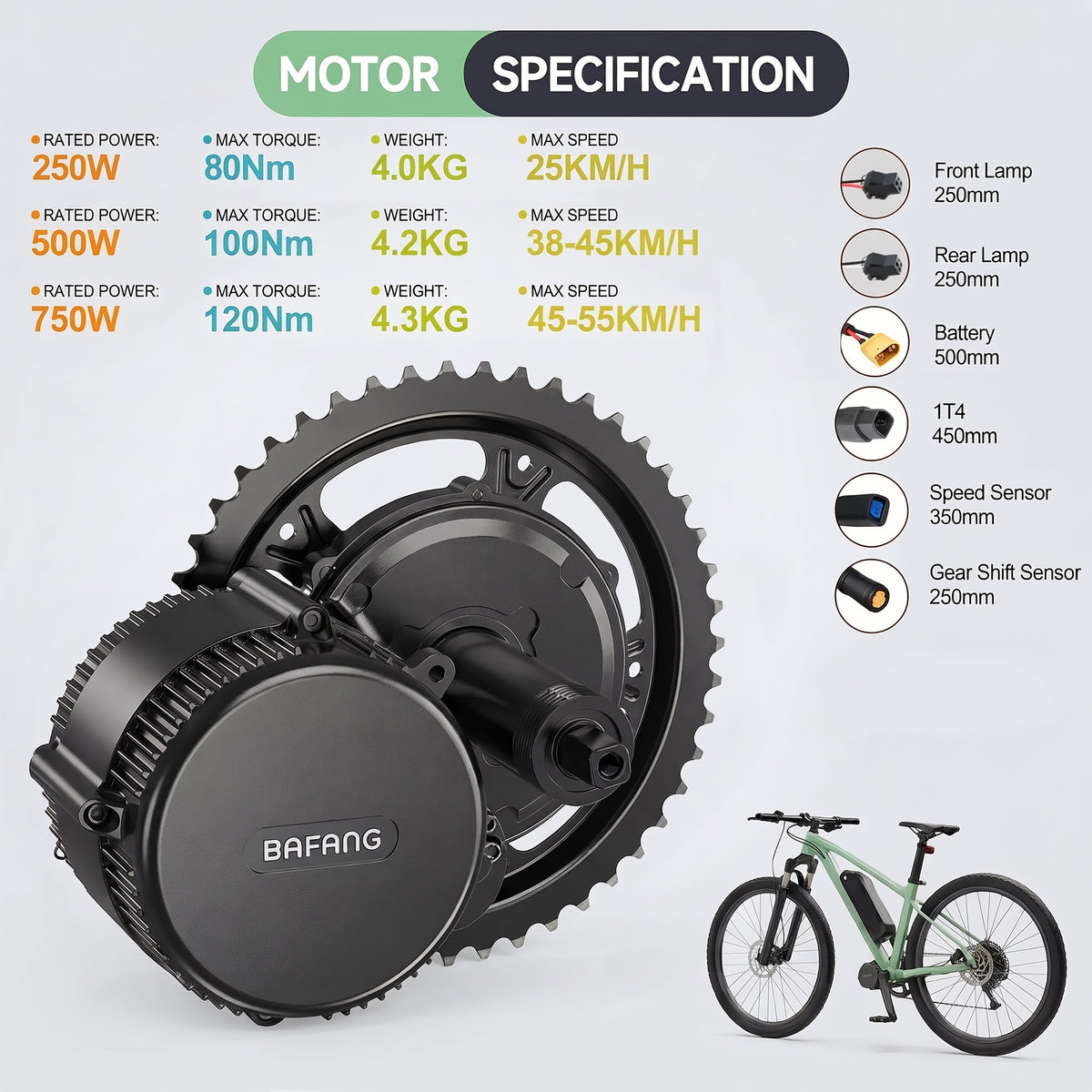

Motor Specifications
• Rated Voltage: 48V
• Rated Power: 750W
• Controller Current: 48V / 24A
• Maximum Torque: 120 N·m
• Efficiency: >85%
• Maximum Assisted Speed: 25 km/h
• Net Motor Weight: Approx. 4.24 kg
• Bottom Bracket Compatibility: 68–73 mm
• Motor Type: Mid-Drive Motor
• Application: Electric Bicycle Conversion
KD1286 Display
• 1.9-inch TFT screen
• PAS Levels: 3 / 5
• Real-time speed display
• Battery power display
• Total mileage display
• Single trip mileage display
• Compact handlebar-mounted design
Key Features
• Powerful 48V 750W mid-drive system
• Maximum torque up to 120 N·m
• Motor efficiency above 85%
• Balanced mid-drive power delivery
• Suitable for 68–73 mm bottom brackets
• KD1286 TFT display included
• Multiple pedal assist levels
• Suitable for commuting, touring, mountain riding and e-bike conversion
• Easy-to-integrate conversion kit

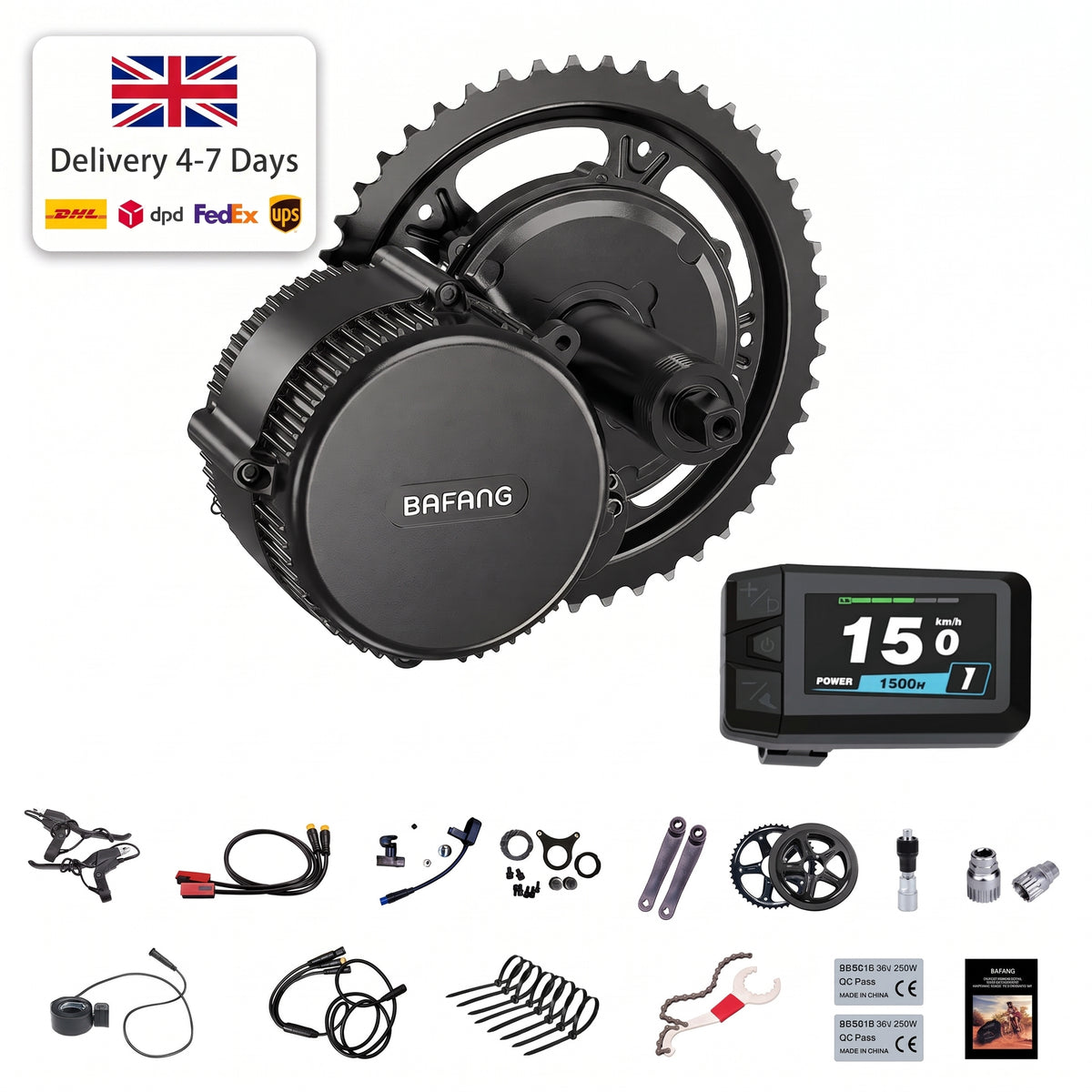

Package Contents
Depending on the selected configuration, the package may include:
• BAFANG 48V 750W mid-drive motor
• KD1286 display
• Thumb throttle
• Main wiring cable
• Speed sensor
• Crank arms
• Lock nuts
• Headlight
• Cable ties
• User manual
• Installation tools
• Chainwheel / sprocket
• Brake sensor or brake lever depending on configuration
Please Check Before Ordering
Please confirm that your bicycle has a compatible 68–73 mm bottom bracket.
This product is designed for a 48V electrical system.
Please make sure your battery voltage and connector type are compatible with the motor kit before ordering.
Battery is not included unless specifically stated in the product configuration.
Please check the selected chainwheel, brake type and connector configuration before purchase.
If you are unsure whether this kit is compatible with your bicycle, please contact us before ordering.
