Dual 3Pin Hydraulic Brake Cut Off Sensor Kit for Electric Bike Bafang Motor
Upgrade your electric bike safety with our Dual 3Pin Hydraulic Brake Cut Off Sensor Kit. Designed for Bafang and most e-bike motors, this brake sensor automatically cuts motor power the moment you squeeze the brake lever, preventing unexpected acceleration and delivering safer riding experience for both hydraulic and mechanical brake systems.
This complete sensor package comes fully equipped with all mounting accessories, no extra parts needed for quick DIY installation. Built with durable PVC cable and strong adhesive sensors, it supports wide 12V-72V e-bike voltage and fits left & right brake levers universally.
Key Features
Auto Power Cut Safety Design.

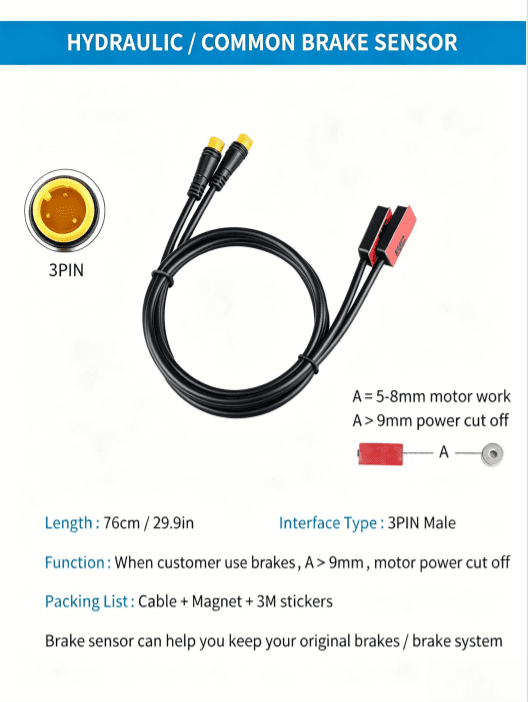

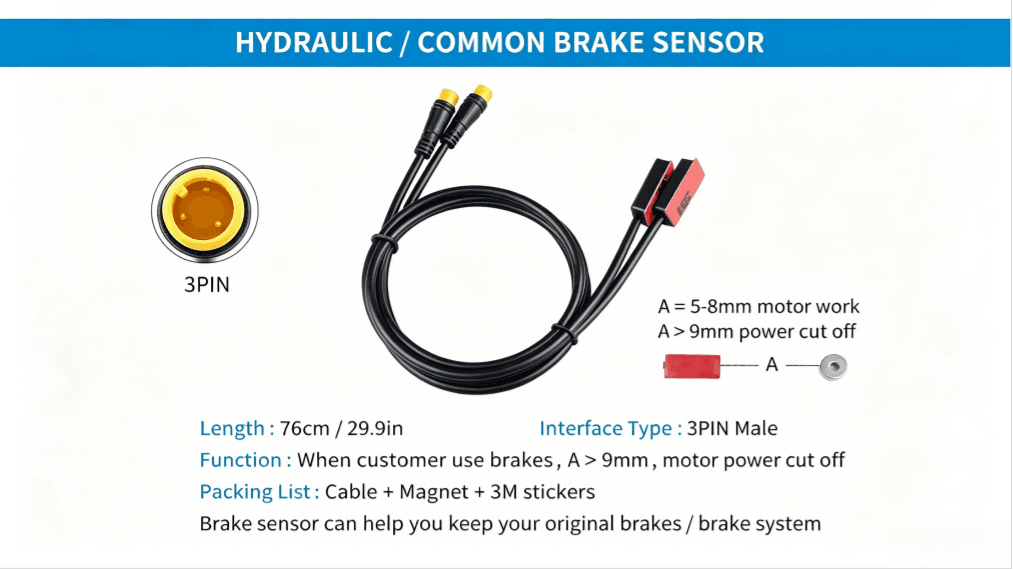

When the distance between sensor and magnet exceeds 9mm after braking, the motor power instantly shuts off; within 5-8mm, the motor keeps running normally, perfectly matching daily riding logic.
Dual 3Pin Male Waterproof Connector.
Dual sensor design controls both front and rear brakes at the same time, standard 3Pin WP plug compatible with mainstream EB-BUS (1T4) e-bike wiring harness.
Complete All-in-One Kit.

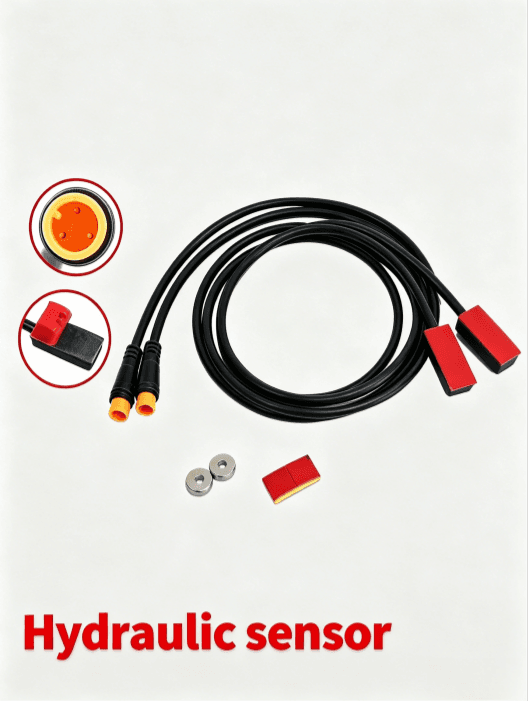

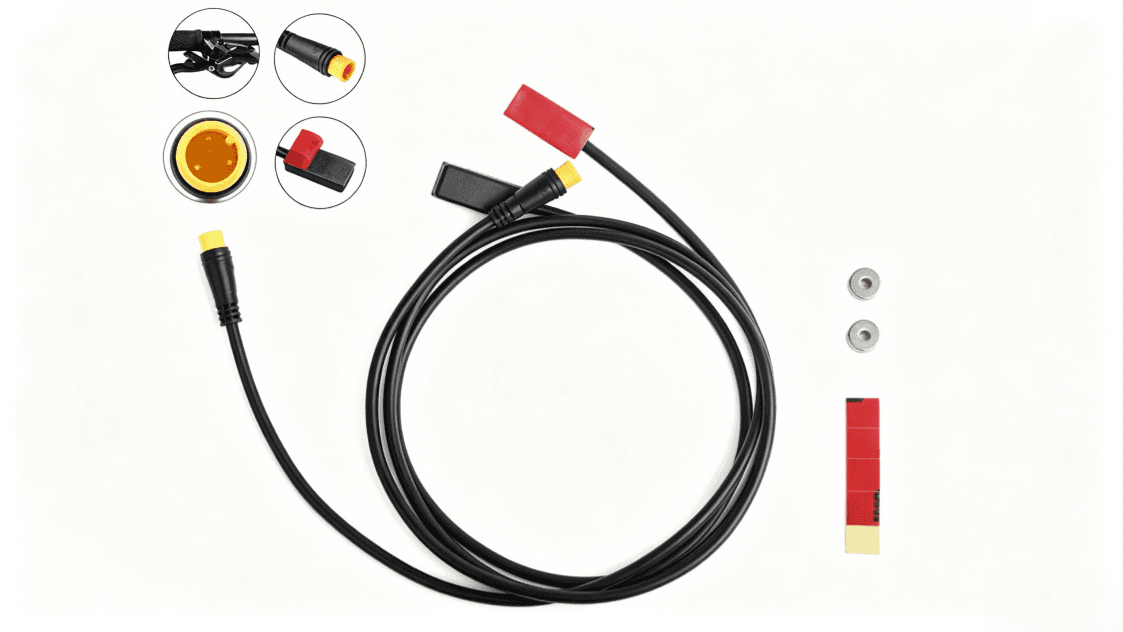

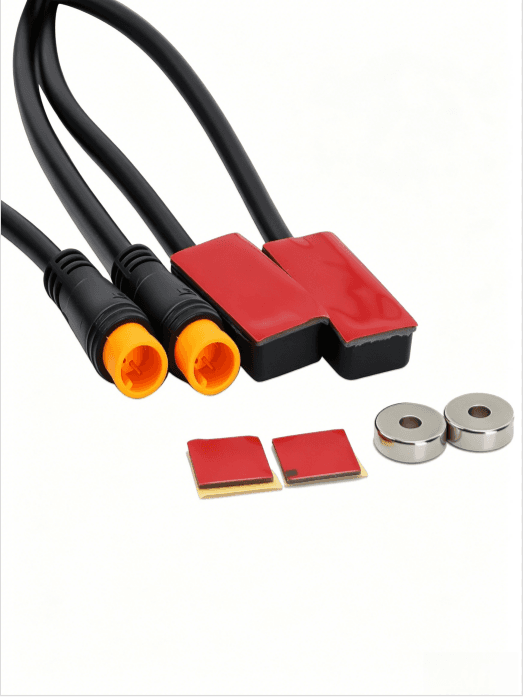

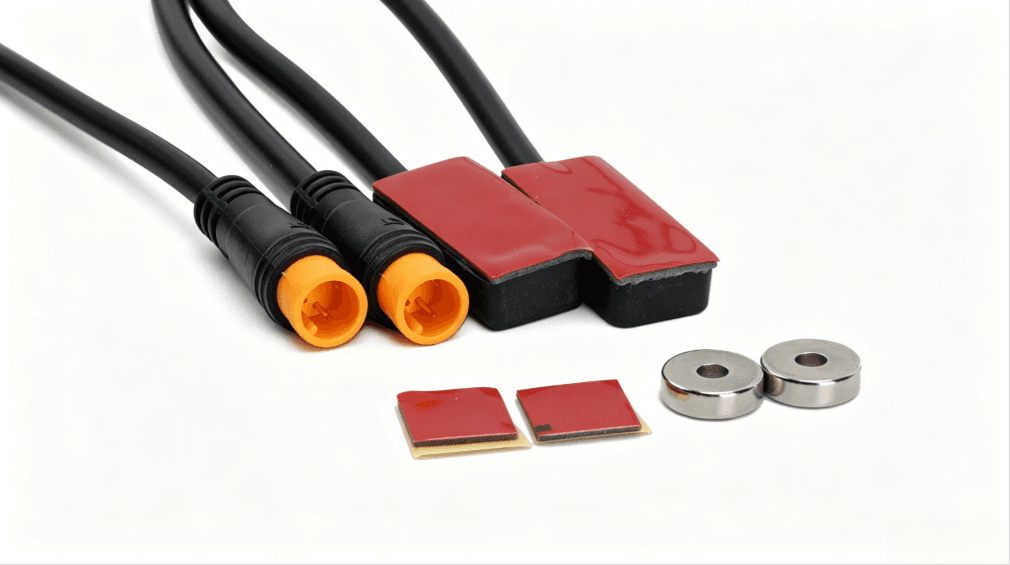

Pack includes 76cm dual sensor cable, 2pcs brake sensor heads, 2pcs metal ring magnets, 2pcs 3M self-adhesive stickers, ready to install out of box.
Stable & Durable Construction.
Flexible anti-wear PVC wire, lightweight 15g sensor heads, high-adhesion red 3M tape for firm mounting without damaging brake levers.Universal Compatibility.Works for hydraulic brakes and ordinary mechanical brakes, suitable for all 12V-72V electric bicycles, e-scooters and mid-drive hub motors.

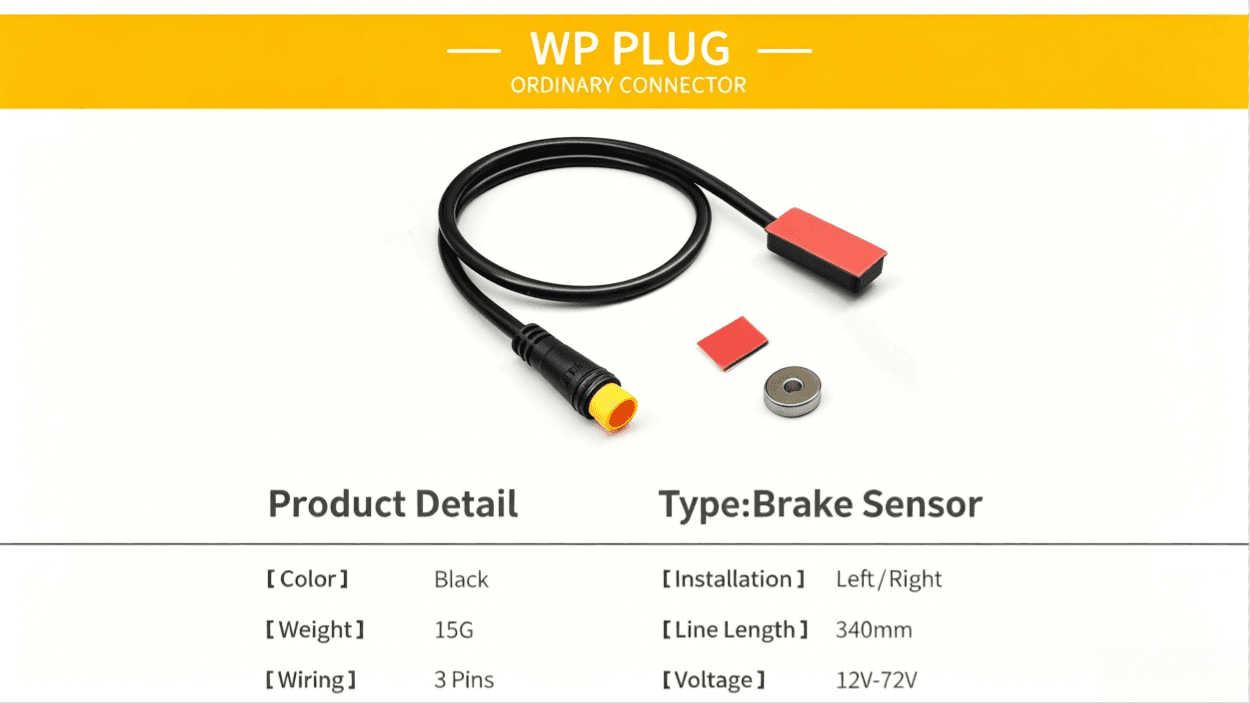

Specification
Connector: 3PIN Male WP Waterproof Plug
Total Cable Length: 76cm / 29.9in

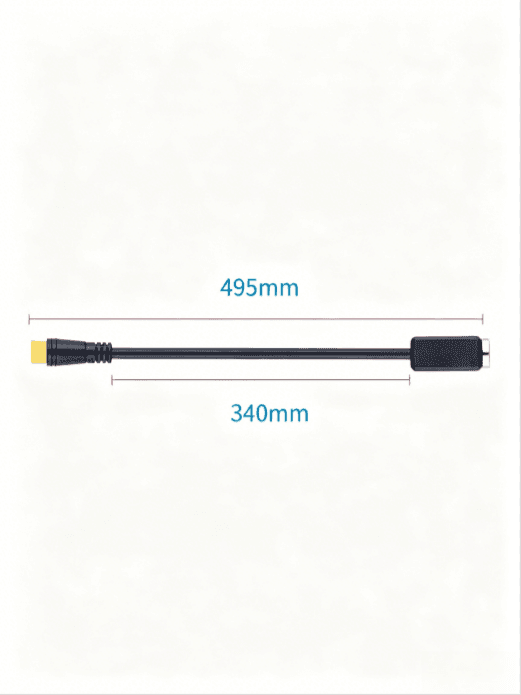

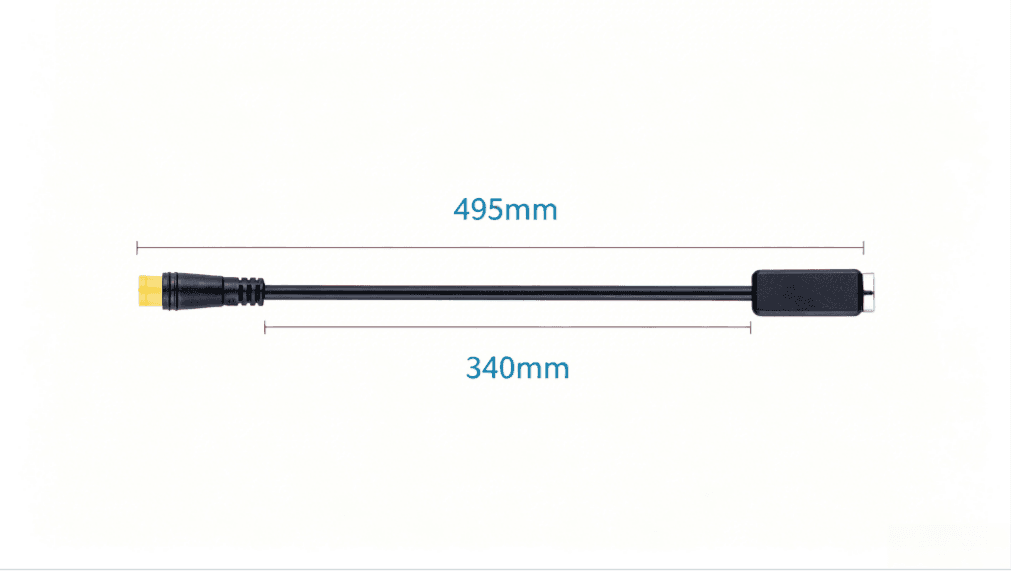

Extension Cable Size: Total 495mm, Effective length 340mm
Working Distance: 5-8mm (Motor Active), ＞9mm (Power Cut Off)
Operating Voltage: 12V-72V
Net Weight: 15g (Single Sensor)
Mount Method: 3M Self-Adhesive, Fits Left / Right Brake Lever
Package Contents: Brake Sensor Cable ×1, Metal Magnets ×2, 3M Adhesive Stickers ×2

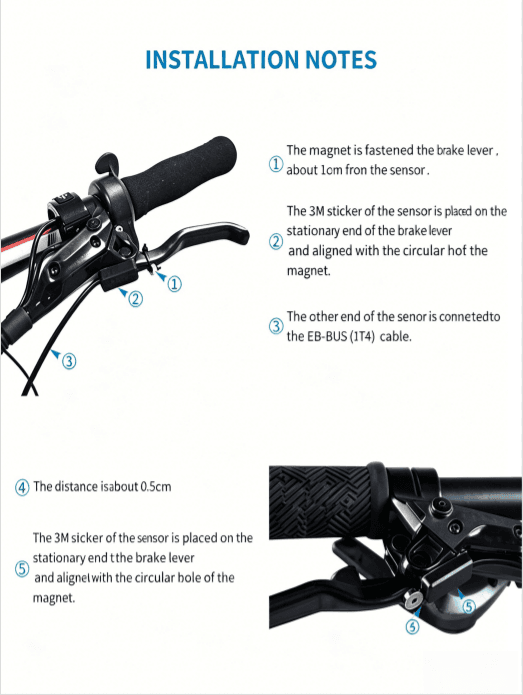

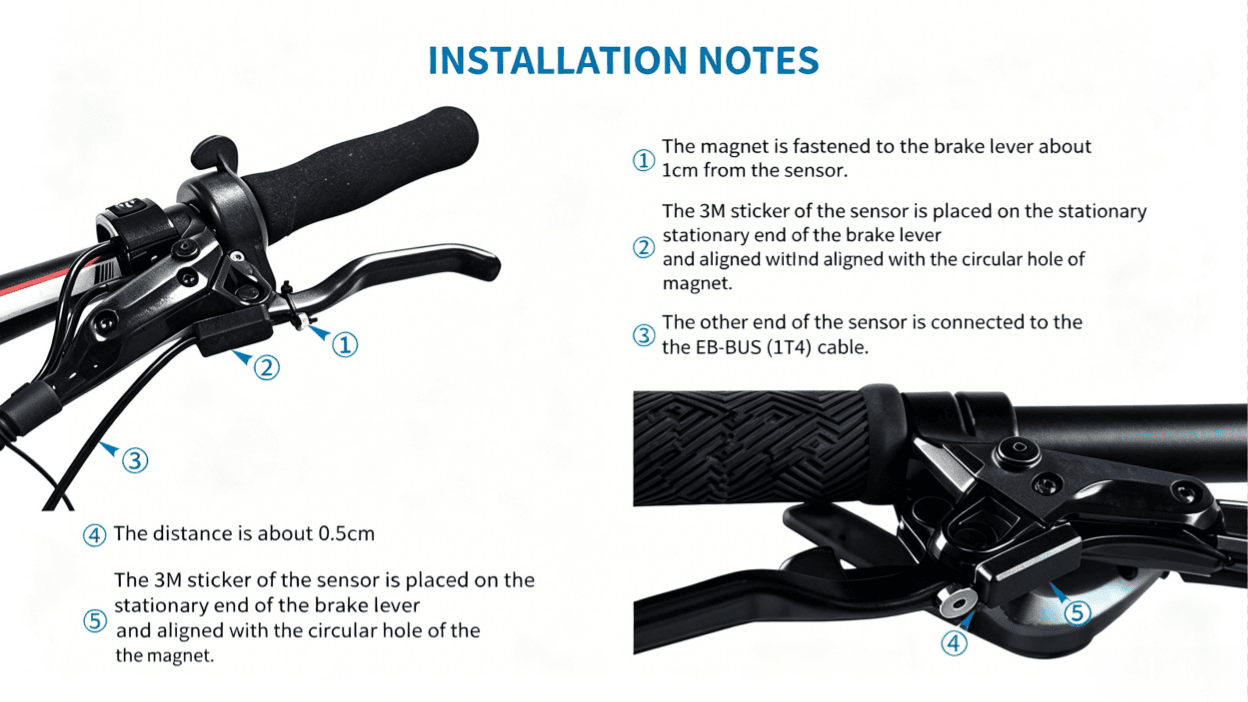

Easy Installation Steps
Attach the metal ring magnet to the movable part of brake lever, keep about 1cm distance from the sensor.
Stick the red 3M sensor pad on the fixed end of brake lever, align it perfectly with the magnet hole.
Keep 0.5cm gap between sensor and magnet for sensitive trigger.
Plug the 3Pin male connector into your e-bike EB-BUS wiring harness. Test braking: squeeze lever to check if motor power cuts off smoothly.
Warm Tips
The sensor supports both hydraulic and mechanical brake levers, retain your original brake structure without modification.
Clean the brake lever surface fully before pasting 3M tape to ensure long-term firm adhesion.
If the motor fails to cut power, adjust the distance between magnet and sensor to 0.5cm for better sensitivity.
