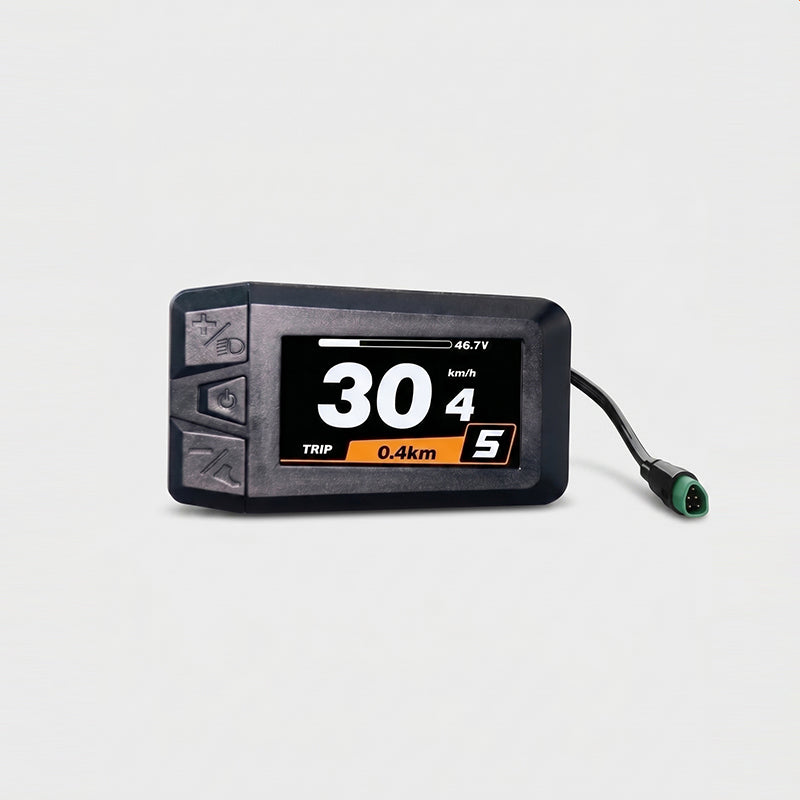

Dashboard Compatible with Bafang BBS CAN Series Mid Drive Motors
This compact 1.9-inch TFT color e-bike display adopts CAN communication protocol with 5-pin male triangular plug, specially designed for Bafang CAN mid-mounted motors. Equipped with adjustable backlight, IPX7 waterproof housing, headlight control and comprehensive riding data readout. A perfect replacement dashboard for your Bafang CAN system electric bicycle.
Upgrade your electric bike control experience with this high-performance TFT color display tailored for Bafang CAN protocol mid drive motors. Featuring a vivid 1.9-inch color screen, this handlebar-mounted dashboard delivers clear real-time riding information under all lighting conditions. The integrated control buttons support convenient parameter adjustment and light switching during cycling.

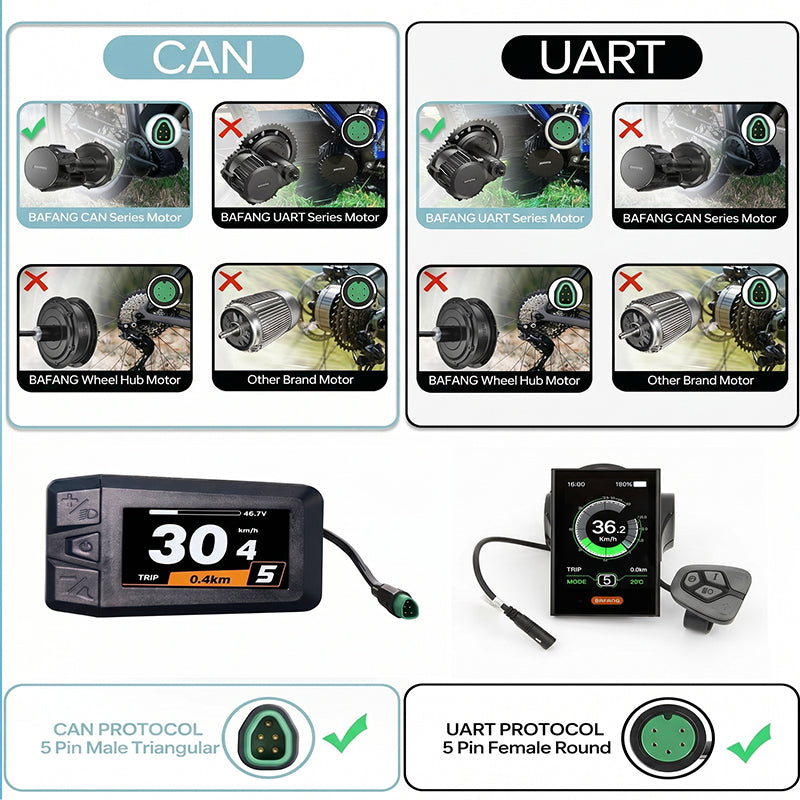

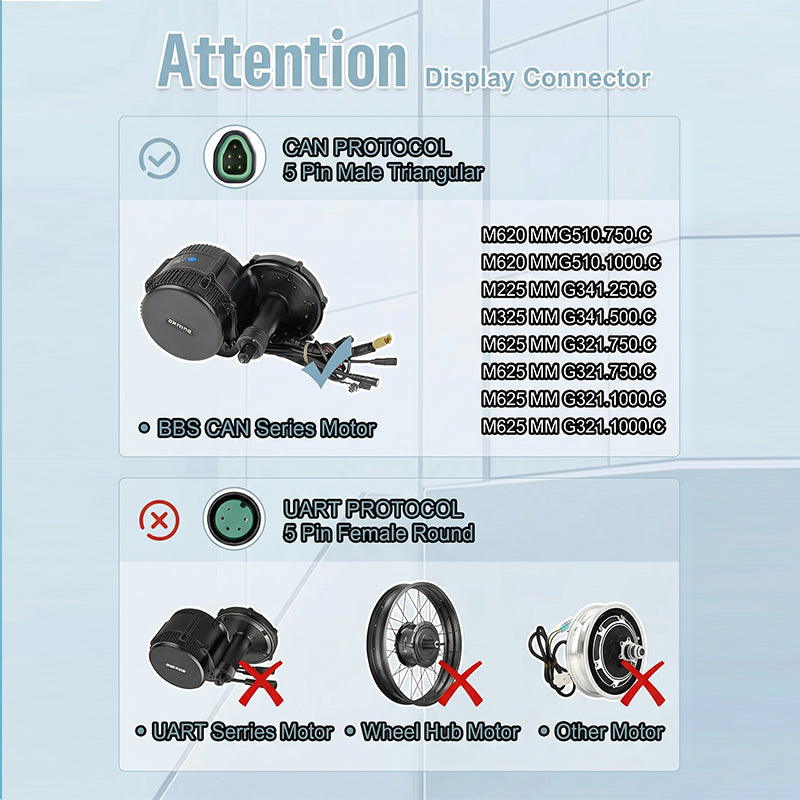

Important Compatibility Notice

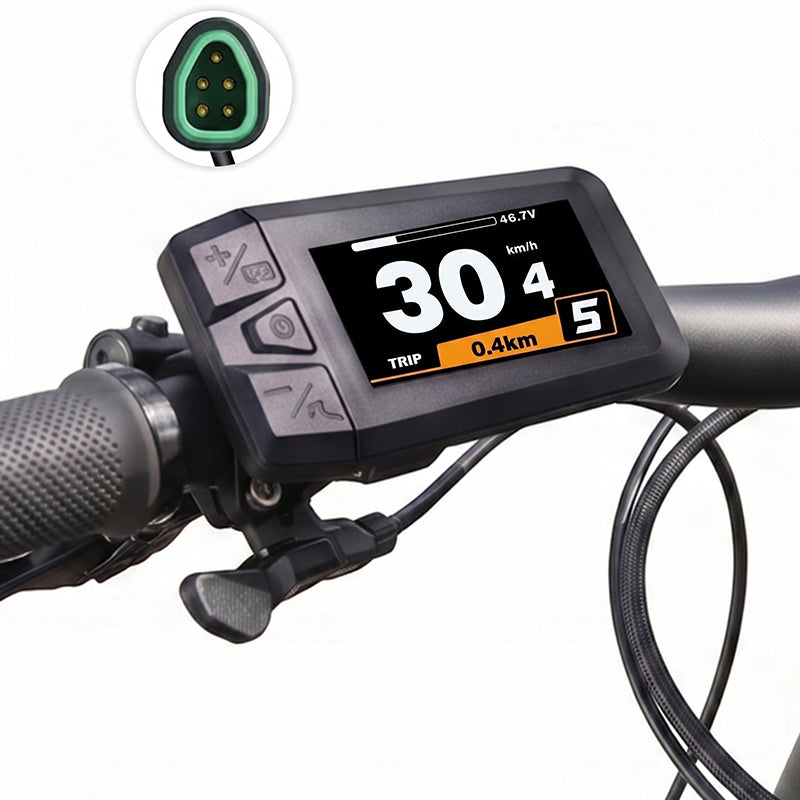

This display uses CAN Protocol with 5 Pin Male Triangular Connector.
It ONLY works with Bafang BBS CAN Series Mid Drive Motors:
M620 MMG510.750.C, M620 MMG510.1000.C
M225 MM G341.250.C, M325 MM G341.500.C
M625 MM G321.750.C, M625 MM G321.1000.C
Not Compatible:
❌ Bafang UART protocol motors
❌ Bafang hub wheel motors
❌ Electric bike motors from other brands
Please confirm your motor communication protocol and connector type before placing your order to avoid mismatching.

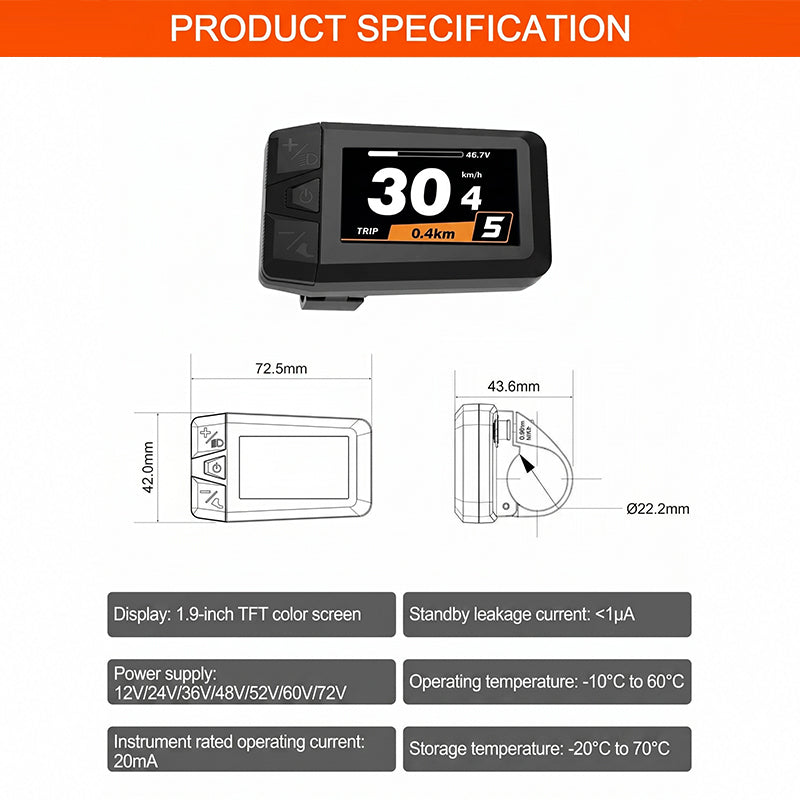

Main Specifications
Screen Size: 1.9-inch TFT Color Display
Connector: CAN Protocol, 5 Pin Male Triangular Plug
Working Voltage: 12V / 24V / 36V / 48V / 52V / 60V / 72V wide voltage support
Rated Operating Current: 20mA
Standby Leakage Current: Less than 1μA
Waterproof Rating: IPX7
Mounting Diameter: Fits 22.2mm standard bicycle handlebars
Dimension: 72.5mm × 42.0mm × 43.6mm
Operating Temperature: -10℃ ~ 60℃
Storage Temperature: -20℃ ~ 70℃
Core Product Features
✅ Vivid TFT Color Screen
Compared with traditional black-white LCD screens, the colorful TFT panel provides higher contrast and better visibility under strong sunlight. All riding data can be read effortlessly.

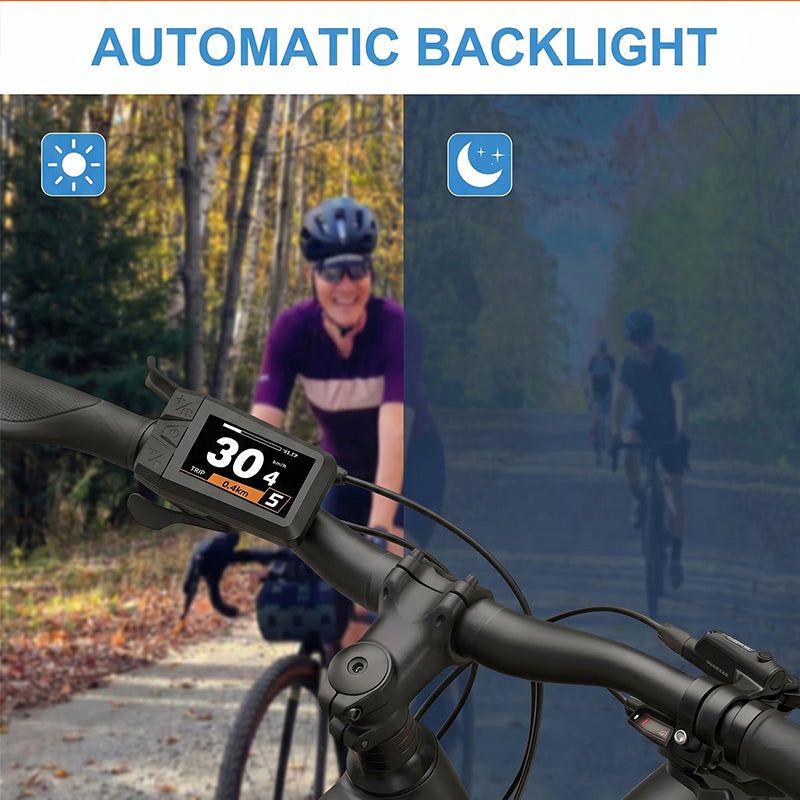

✅ 0-5 Levels Adjustable Backlight
5 brightness levels are available for manual adjustment. Automatic backlight function adapts to daytime and nighttime environments to save power and optimize viewing experience.
✅ Headlight & Taillight Control
Built-in light control function. You can directly switch the e-bike front headlight and rear taillight via the buttons on the display, no extra controller needed.
✅ IPX7 Waterproof Structure
Fully sealed casing reaches IPX7 waterproof standard. It can resist heavy rain splashing during outdoor cycling, stable performance in all weather conditions.
✅ Comprehensive Riding Data Monitoring
Real-time display includes current speed, PAS assist level, battery voltage, TRIP single trip distance and ODO total mileage. You can easily track your riding status at a glance.
✅ Ergonomic Integrated Button Layout
Four multi-function buttons are arranged on the side of the display. You can adjust assist level, switch lights and turn on/off the display without releasing the handlebar grip. Safe and convenient operation while riding.
✅ Compact Mini Size
Slim and lightweight design will not occupy too much space on your handlebar. Simple clamp installation, quick assembly and disassembly without complicated tools.

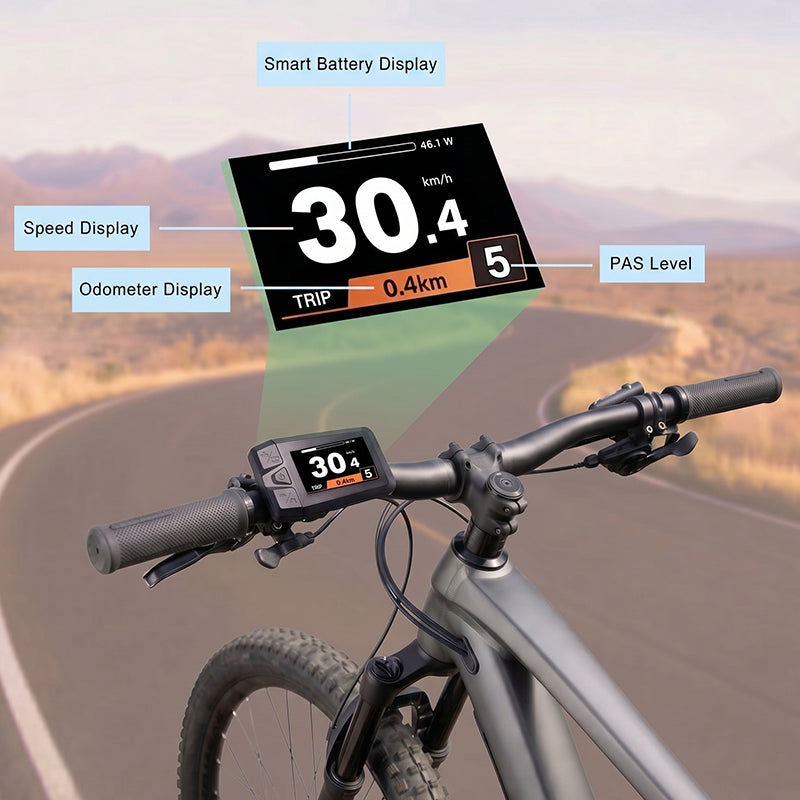

Display Readout Contents
Real-time speed (km/h)
Battery voltage indicator
0~5 PAS assist gear level
TRIP: Single trip distance
ODO: Cumulative total mileage
Package Includes
1 × E-bike TFT Color Display (CAN Protocol, 5 Pin Male Triangular Plug)
1 × Handlebar Mounting Clamp
Warm Reminders
This dashboard is exclusively for Bafang CAN mid drive motors. It cannot work with UART system, hub motors or other brand drive units.
Double-check your motor protocol and plug shape before purchase. The triangular 5-pin male connector cannot match round UART plugs.
IPX7 waterproof supports daily rainy riding. Do not immerse the display in water for a long time.
Suitable for handlebars with diameter of 22.2mm. Confirm your handlebar size before installation.
