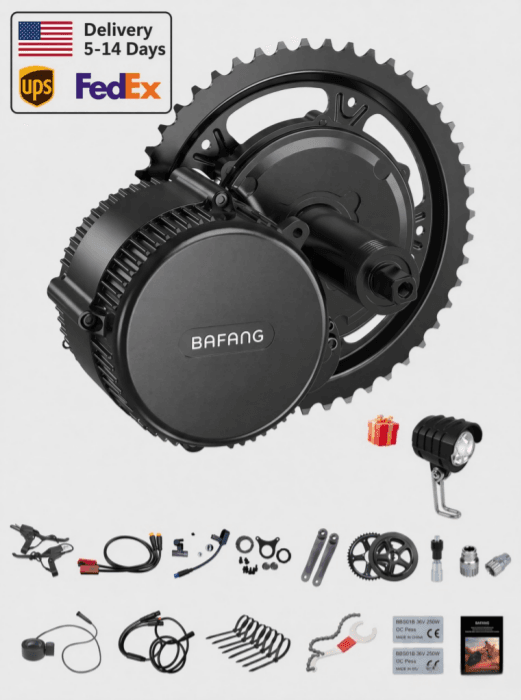

Detail

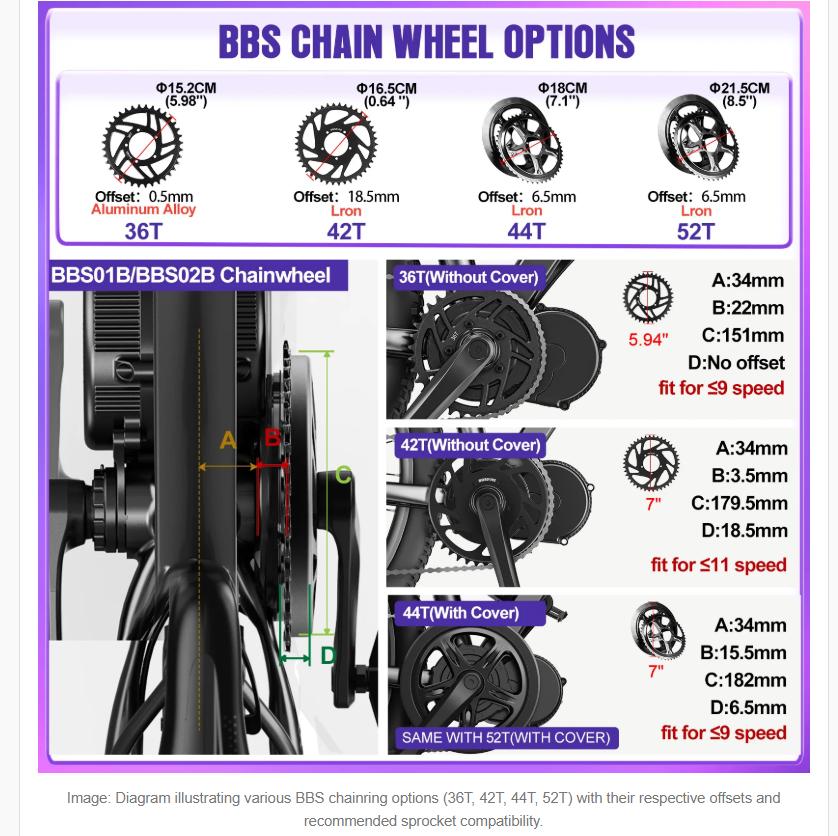

Chainring Selection and Installation

Select the appropriate chainring based on your desired gear range and sprocket compatibility. Offset information is critical for proper chainline.

Crash requirement

1.The central axle bowl is imperial,
2.This mid-mounted motor package is suitable for general commuting, mountain bikes, folding bikes, and station wagons;

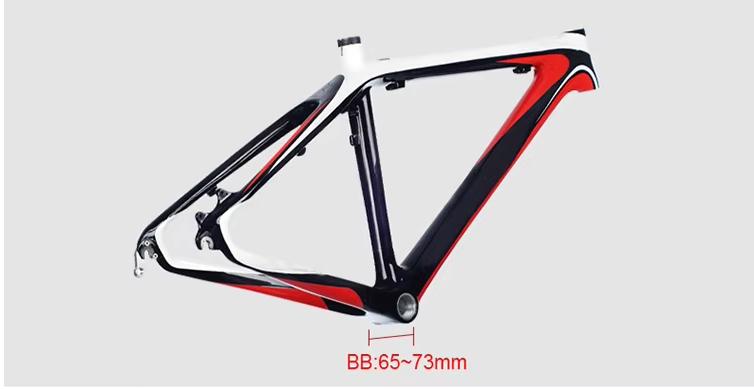

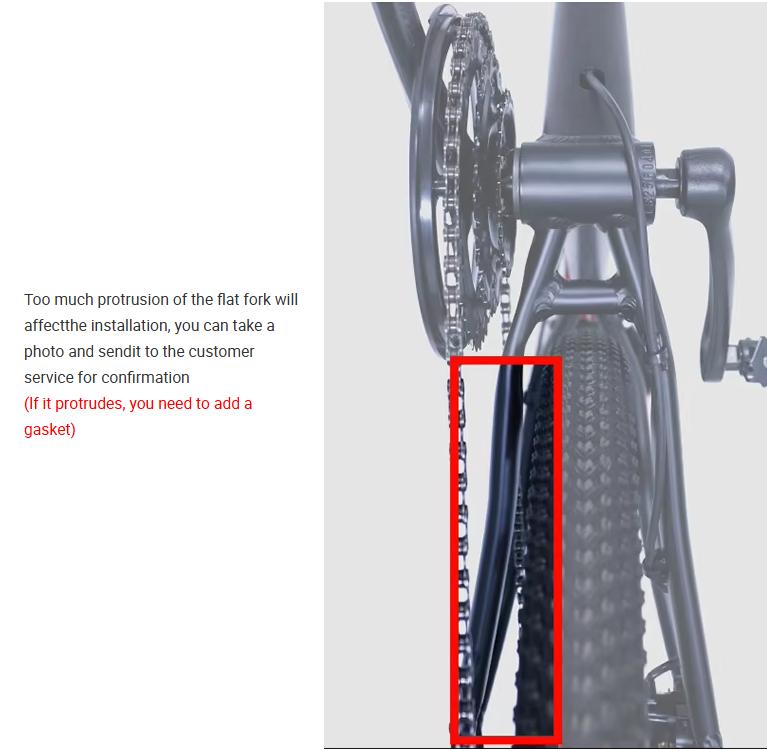

3.The five-way opening of the whole series is 65~73mm (please confirm whether the size of your five-way pipe meets the loading requirements before shooting), among which 48V/1000W also has 100mm and 120mmd five-way opening. Please note the special requirements. Otherwise, it will default to standard configuration.
4.The kit does not contain batteries

Brake System Integration

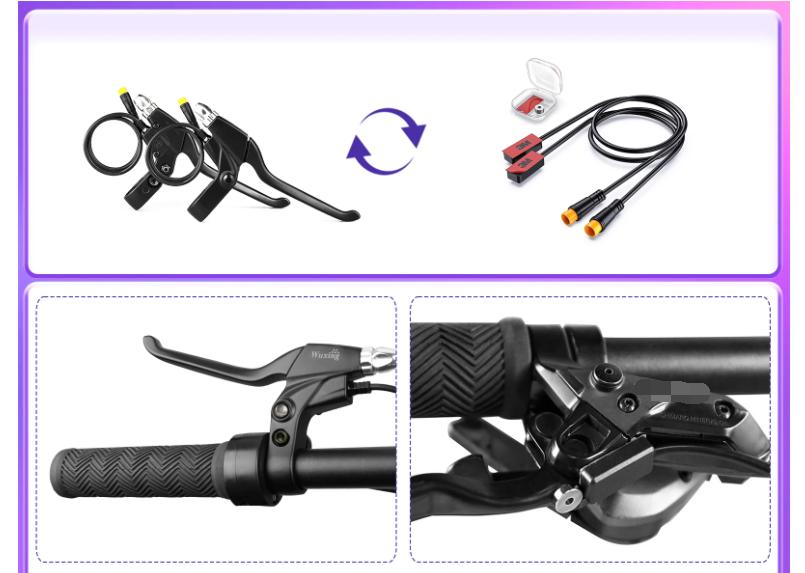

Choose between brake levers with integrated motor cutoff or electronic brake sensors, depending on your bike’s existing brake system.

• If your brake is mechanical, you can choose our Brake Lever.
• If your brake is hydraulic, you can choose our Brake Sensor. If you don’t change your brake lever, you can also choose our Brake Sensor.

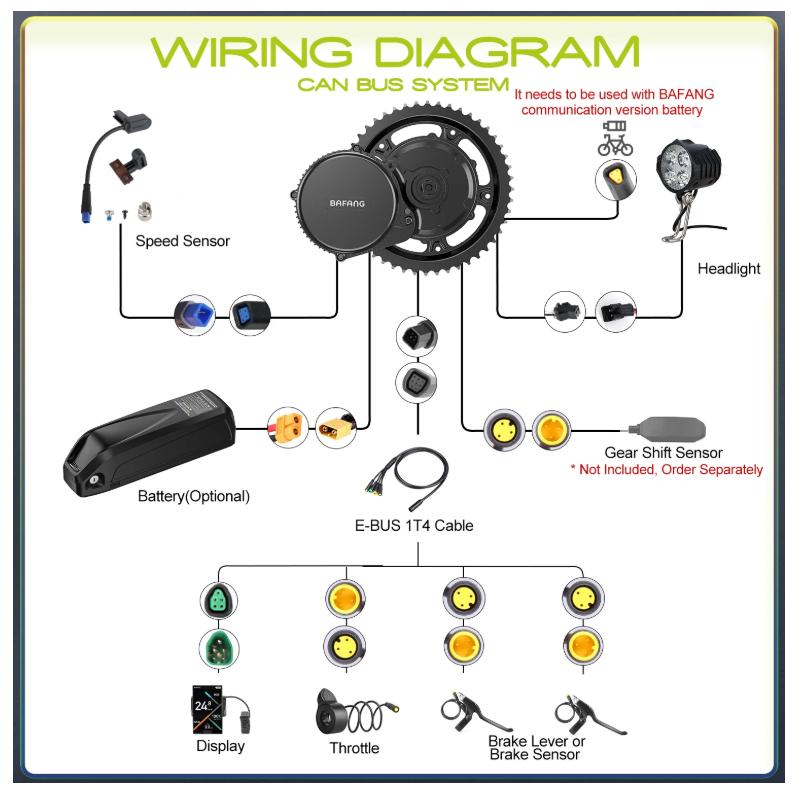

Wiring Diagram (CAN BUS System)

The kit utilizes a CAN BUS system for communication. Ensure all components are connected as per the diagram. This system requires a BAFANG communication version battery (optional, not included in all kits).

Key Connections:

Motor to Battery (Optional)
Motor to E-BUS 1T4 Cable

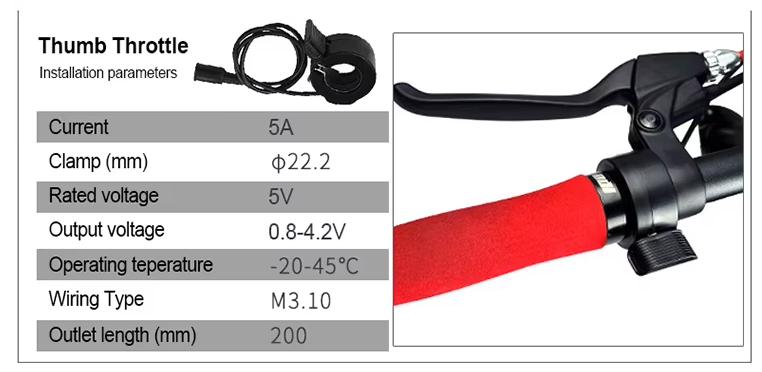

E-BUS 1T4 Cable to Display, Throttle, Brake Lever/Sensor (x2)

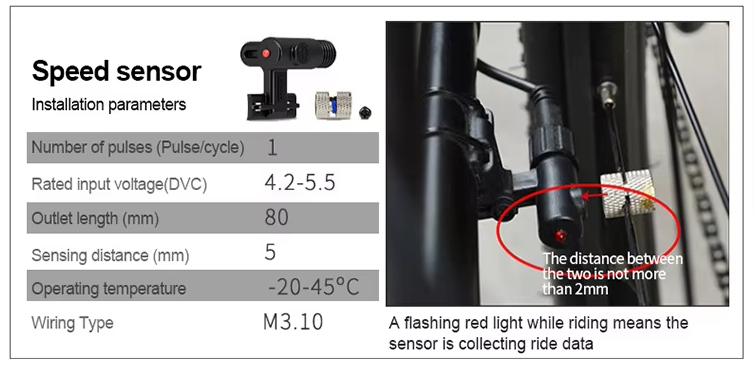

Speed Sensor to Motor
Optional Headlight to Motor
Optional Gear Shift Sensor (not included, order separately)

⚠ Incompatible with legacy UART Display systems due to redesigned motor interface architecture.

FAQ

Question: What types of bikes are compatible with the BAFANG Mid Drive Kit?
Answer: The BAFANG Mid Drive Kit is designed for mountain bikes and road bikes with frame widths between 68mm and 120mm. This versatility allows cyclists to convert a wide range of traditional bicycles into electric bikes. Additionally, its robust compatibility makes it ideal for various riding styles, whether you are cruising on city roads or tackling rugged mountain trails.

Question: What is the difference between the 500W, 750W, and 1000W options?
Answer: The primary difference among the 500W, 750W, and 1000W options lies in their power output, affecting performance on inclines and acceleration. The 500W version is great for flatter terrains, while the 750W and 1000W models are suited for hilly areas or off-road conditions. Selecting the appropriate wattage will depend on your riding needs and the types of trails you typically ride.

Question: Can I install the BAFANG Mid Drive Kit myself?
Answer: Yes, many users successfully install the BAFANG Mid Drive Kit themselves, provided they have some mechanical skills. The kit comes with detailed instructions, and online resources, including video tutorials, can guide you step-by-step through the installation process. This DIY approach not only saves costs but also gives you a better understanding of your e-bike’s mechanics.

Question: What battery specifications are required for this conversion kit?
Answer: The BAFANG Mid Drive Kit is compatible with 36V, 48V, or 52V batteries. Your choice should align with the motor wattage to optimize performance. Higher voltage systems generally offer better efficiency and performance, especially on steeper terrain. When selecting a battery, consider capacity, as it directly impacts your ride distance and ebike performance.

Question: Is the BAFANG Mid Drive Kit suitable for commuting?
Answer: Absolutely! The BAFANG Mid Drive Kit is an excellent choice for commuting, providing a boost to your pedaling when needed. With the ability to tackle various terrains and distances, it enhances your cycling experience, enabling you to travel faster and with less fatigue. Whether navigating city streets or longer commutes, this kit can make your daily travel more enjoyable.

Question: What maintenance is required for the BAFANG Mid Drive Kit?
Answer: Regular maintenance for the BAFANG Mid Drive Kit includes checking the motor for cleanliness and ensuring that all electrical connections are secure. It’s also important to keep the drivetrain components clean and lubricated, as this promotes longevity. Routine checks will ensure optimal performance and provide a smooth riding experience across different terrains.

Question: How does the CAN Bus system work in this electric bike conversion kit?
Answer: The CAN Bus system manages communication between the motor, battery, and controller, ensuring efficient power delivery for a harmonized riding experience. This intelligent system allows adjustments in real-time based on rider input, optimizing performance and energy use. Understanding this system can enhance your riding efficiency and help troubleshoot any potential issues effectively.

Question: What tools do I need to install the BAFANG Mid Drive Kit?
Answer: To install the BAFANG Mid Drive Kit, you will need basic tools such as a torque wrench, hex keys, a screwdriver set, and possibly a pedal wrench. Having these tools on hand will streamline the installation process and ensure that all components are securely fixed. Checking your bike’s specifications and preparing the right tools ahead of time will make your installation much smoother.

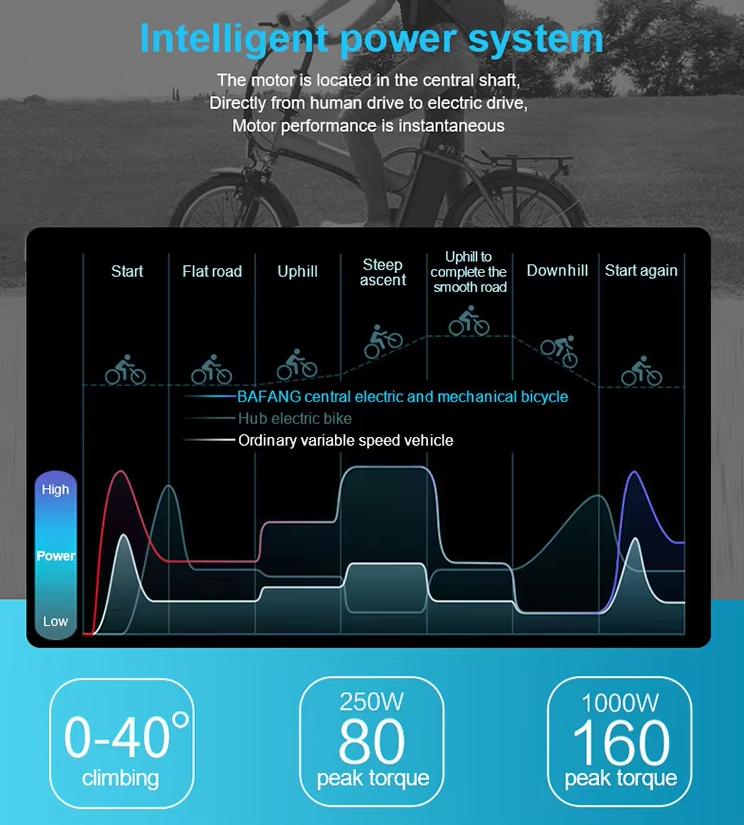

Question: What are the advantages of using a mid-drive motor over a hub motor?
Answer: Mid-drive motors, like the BAFANG kit, provide better weight distribution and efficiency, particularly on hills. They allow you to use your bike’s gears to improve torque, offering a more natural ride feel. This setup is particularly advantageous for varied terrains, making it ideal for both mountain biking and commuting, ultimately enhancing your cycling experience.
