Detail

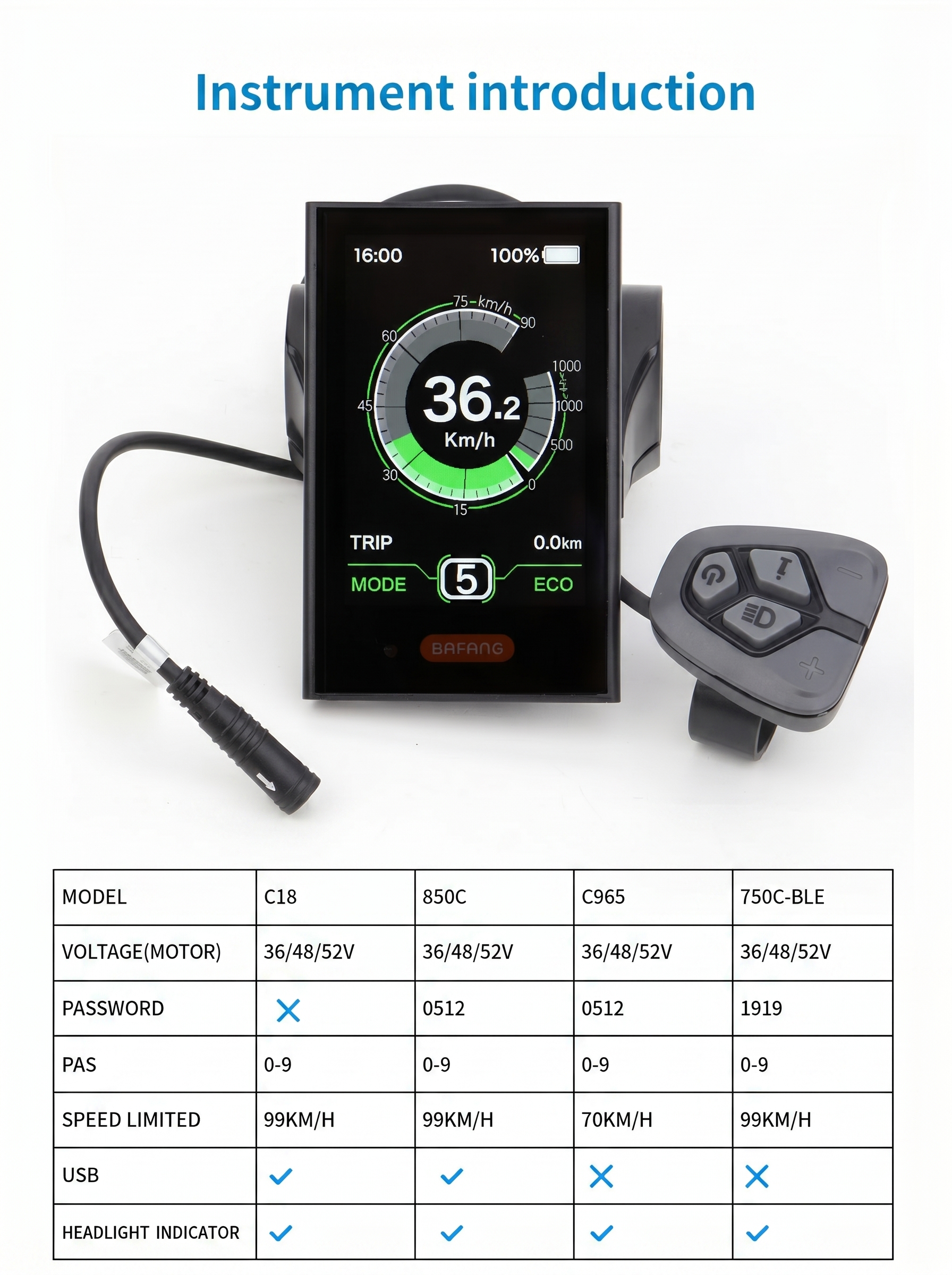

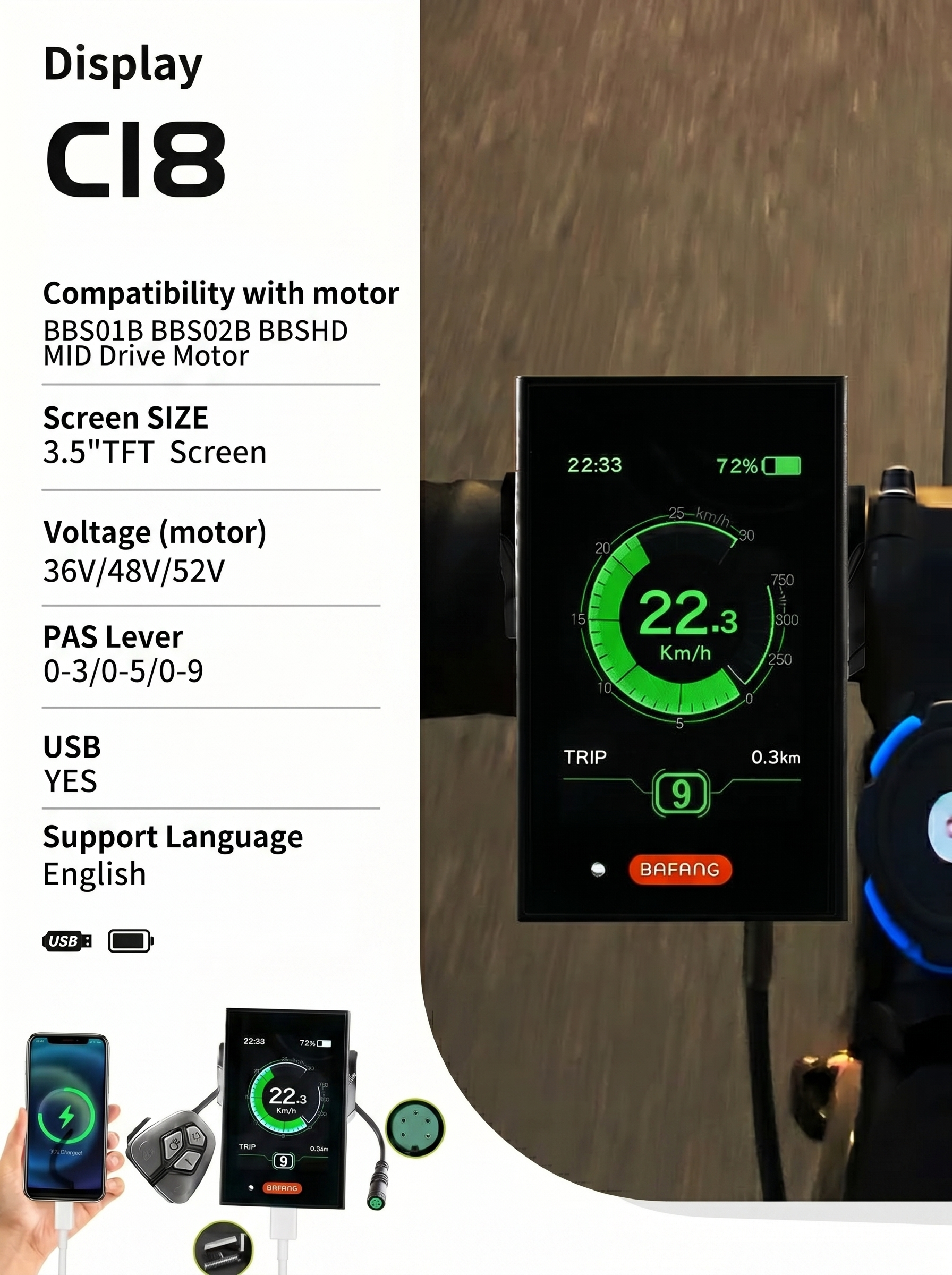

The BAFANG C18 display features

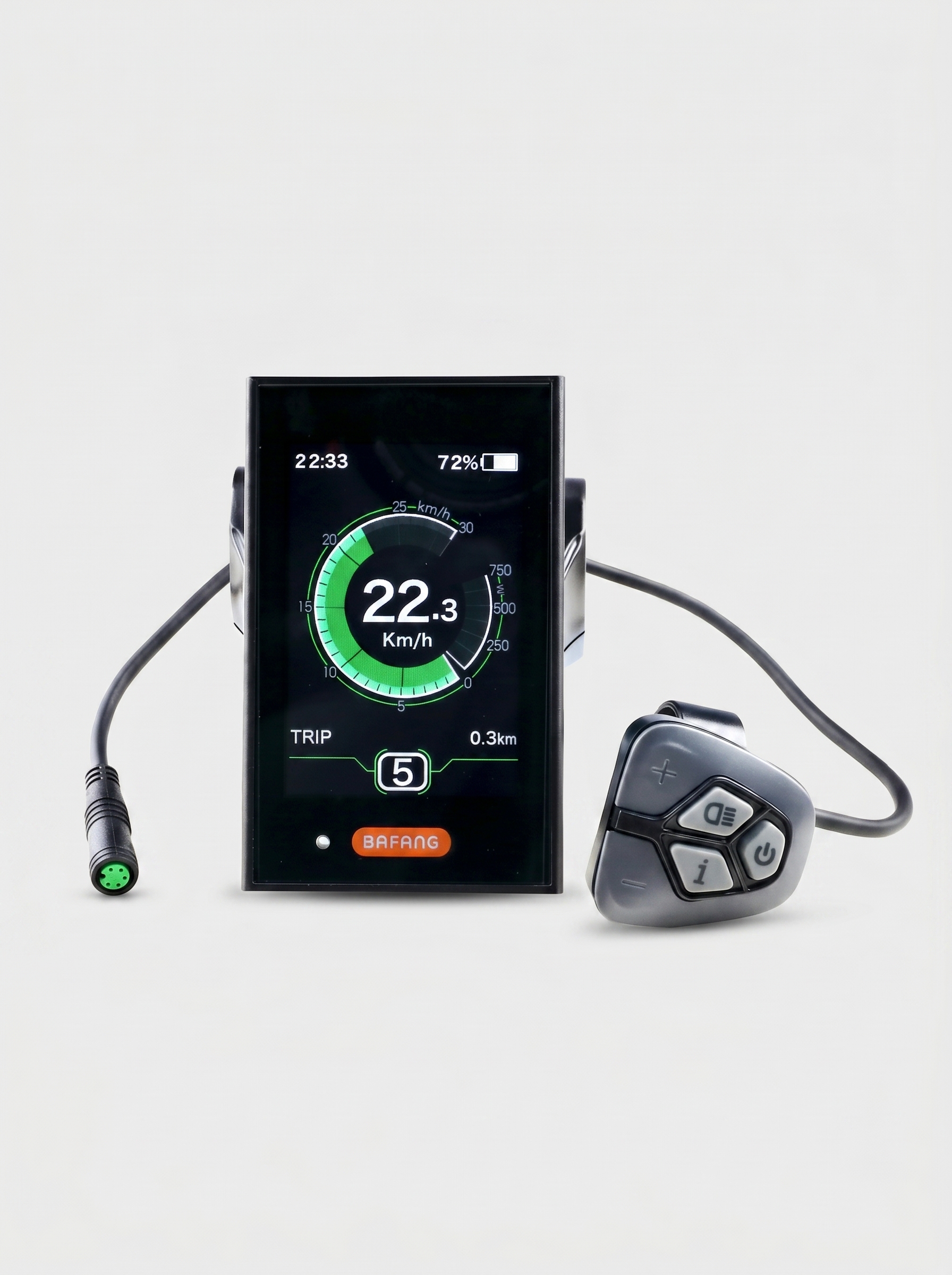

• DP-C18 Colorful E-Bike Display
• Screen Size: 3.2 inch
• Voltage: DC 36V/43V/48V
• Speed Limit: 90km/h
• Brightness: 5-level (10%,30%,50%,75%,100%)
• PAS Speed Level: 0-5 level
• Show Battery level, speed, distance, power, and more

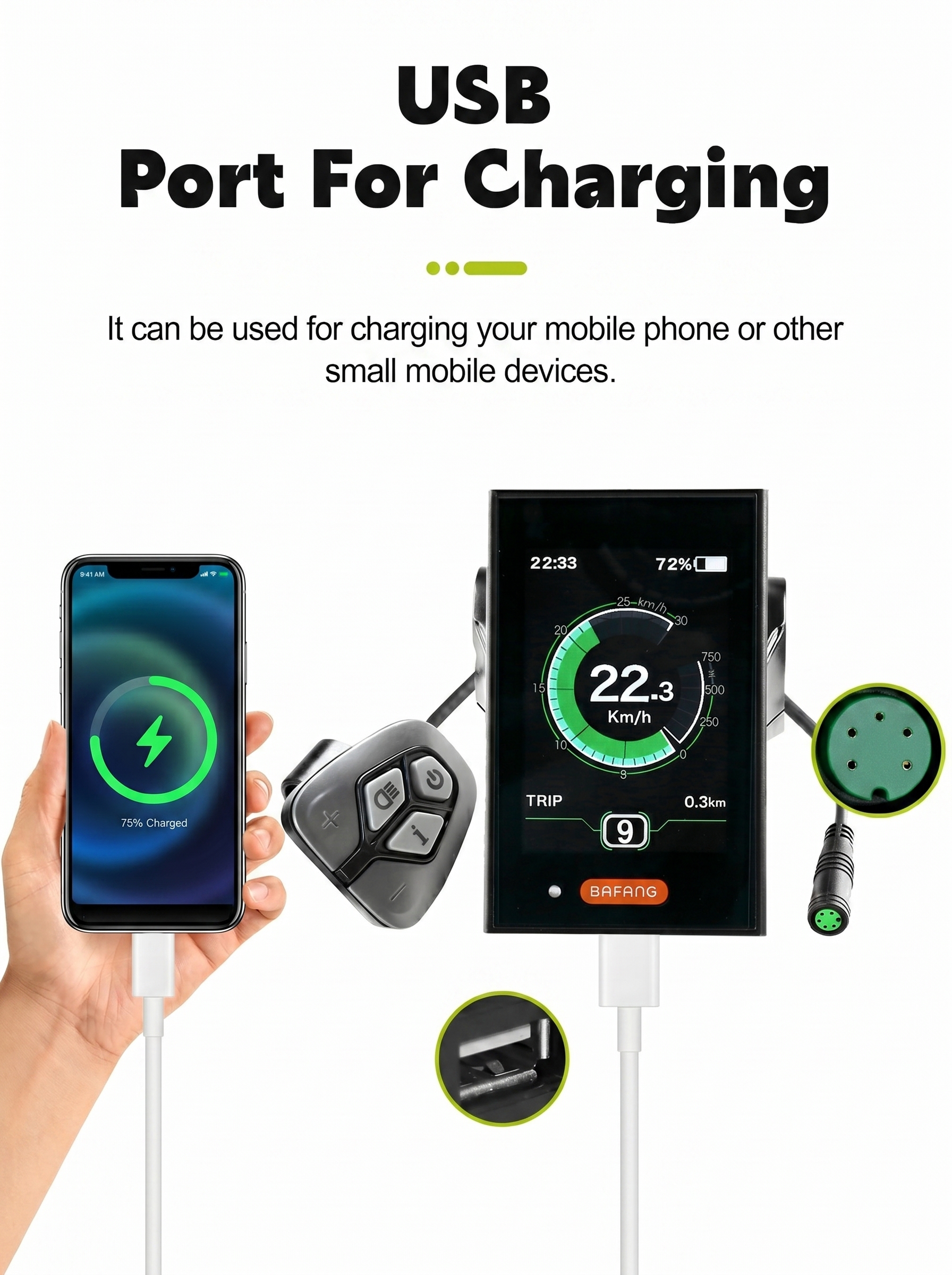

• USB Output: 5V 500mA
• Protocol: UART
• High-contrast IPS Colorful Matrix Display
• Compatible with BBS01, BBS02 and BBSHD
• Waterproof: IP65
• Operation Temperature: -20～45℃
• Storage Temperature: -30～70℃

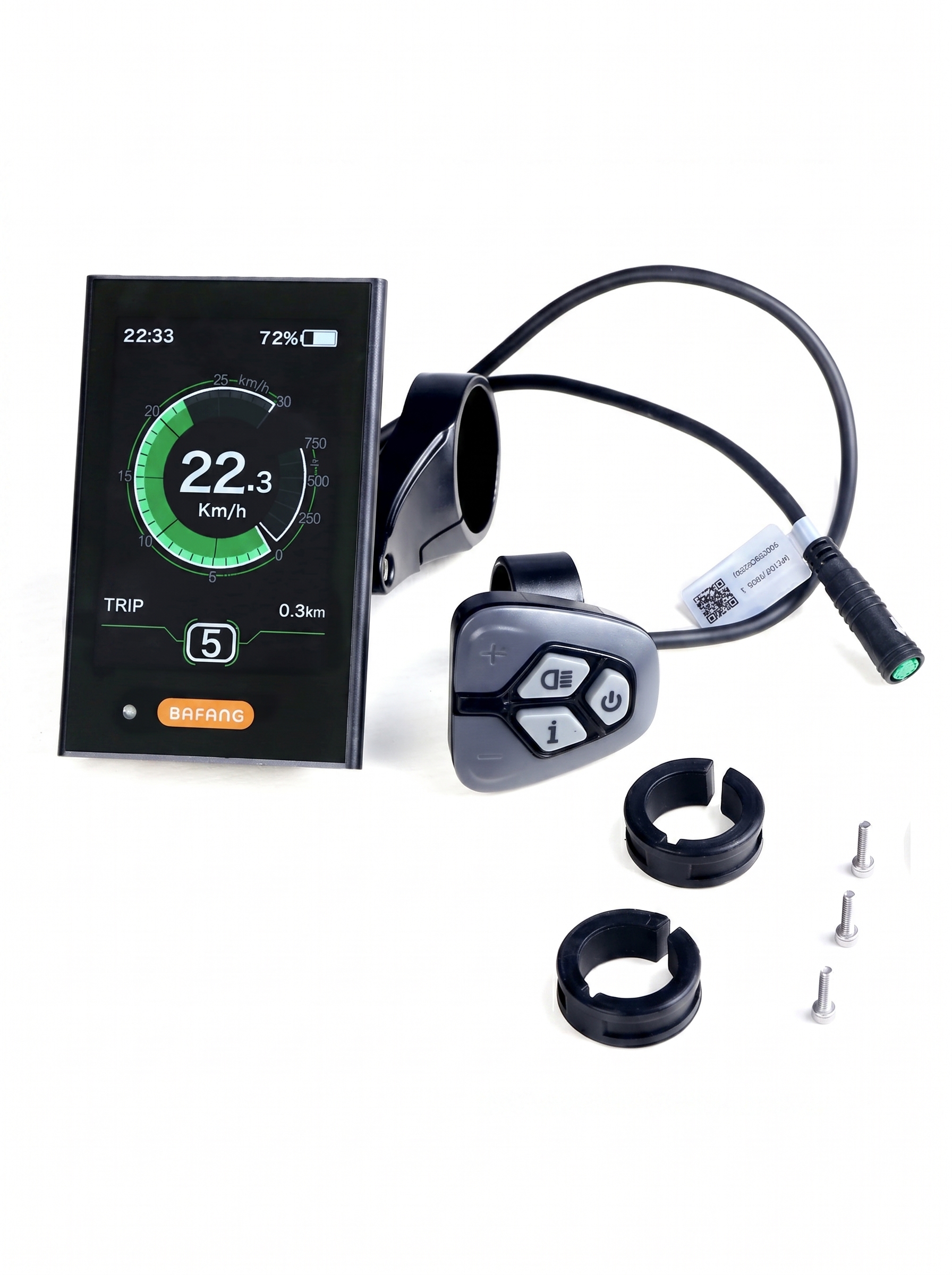

• Suitable Handlebar Diameter: φ22.5/25.4/31.8mm
• Press Key cable length: 24.5cm
• Power cable length: 46cm

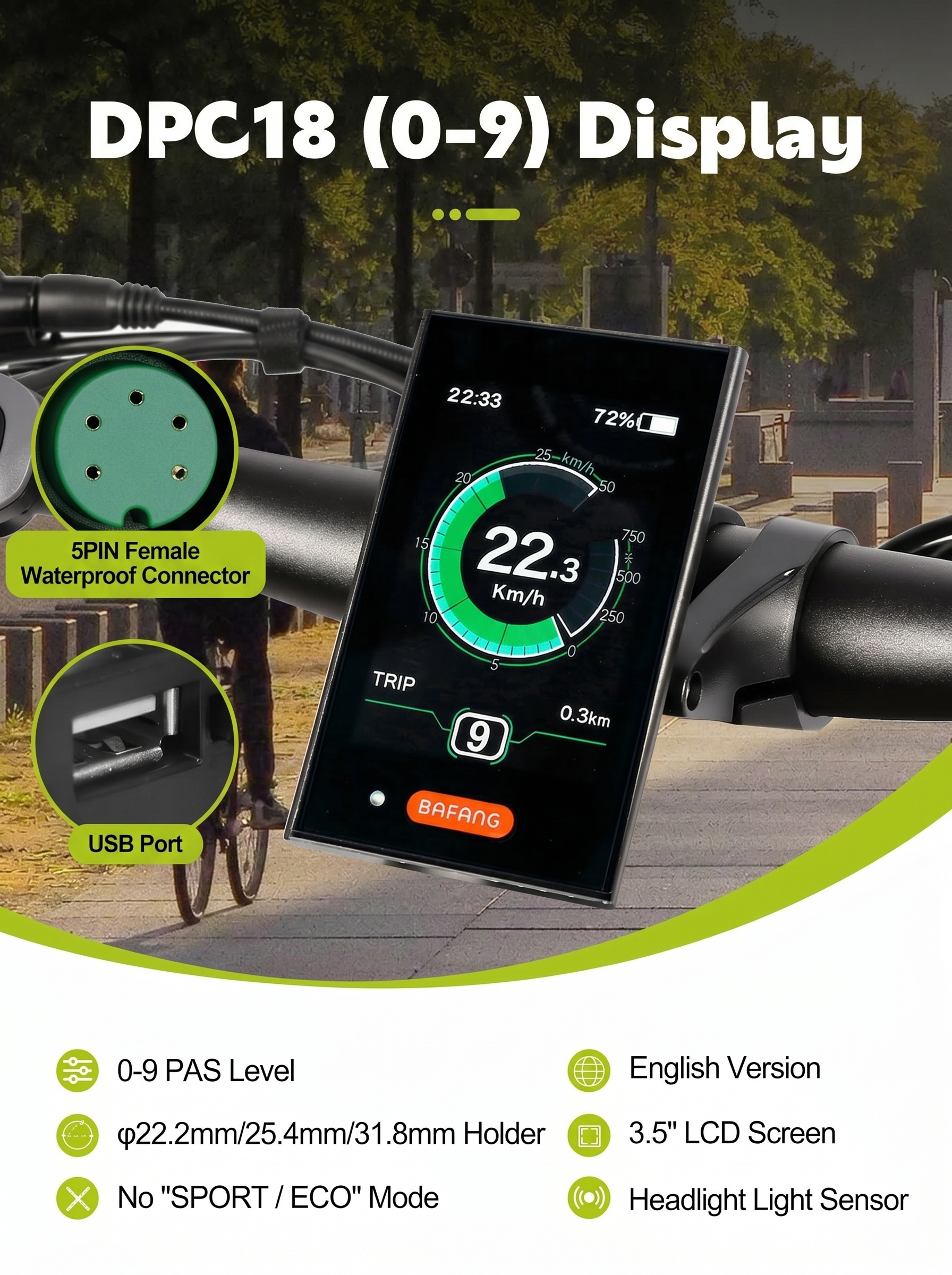

• Plug Type: 5-pin waterproof quick release female
• Size: (W)62 x (H)96mm (2.44×3.78 inch)
• Weight: 350g

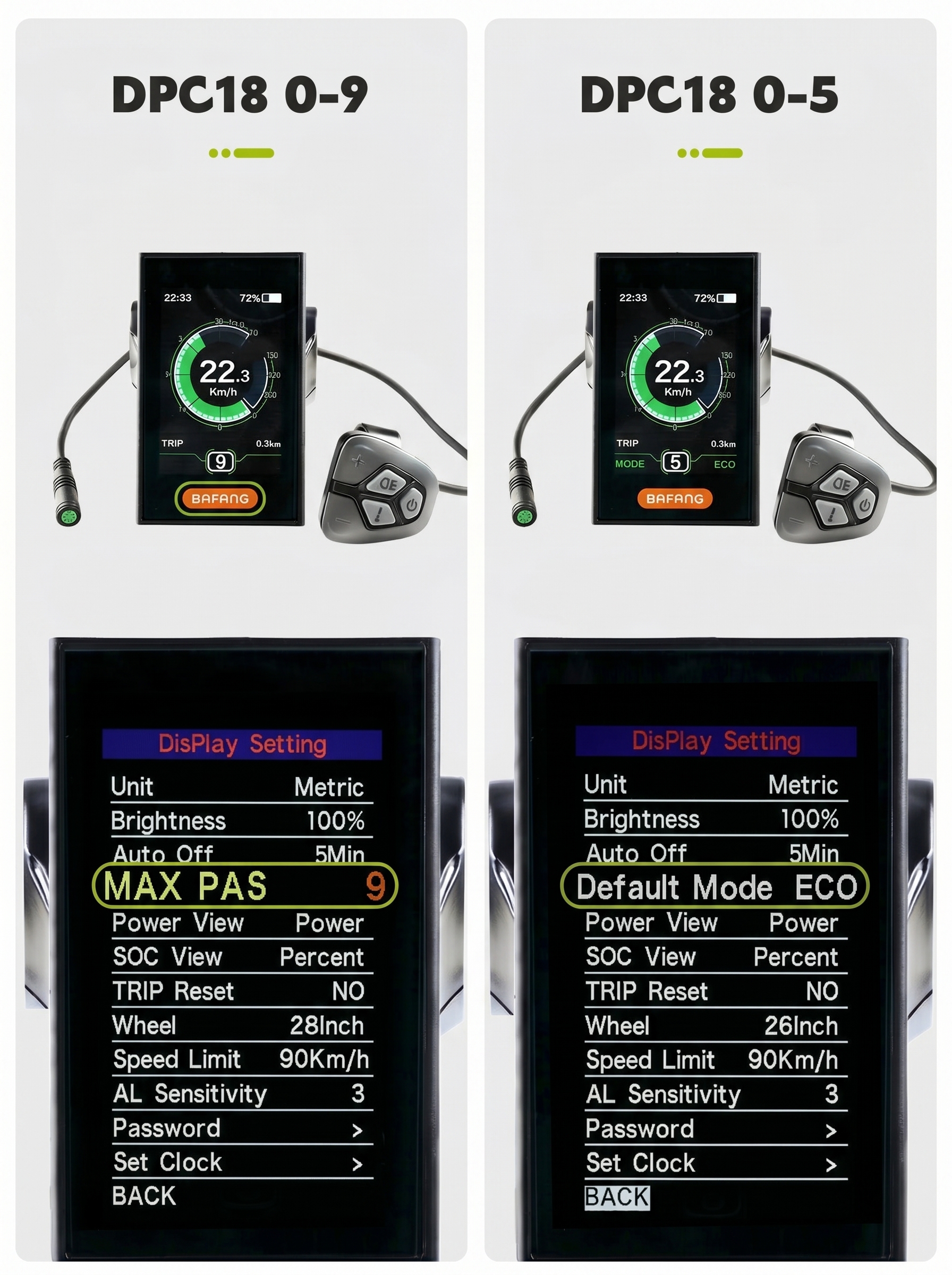

Ebike screen settings

• Speed display: displaying the real-time speedas SPEED, the maximum speed as MAXS andthe average speed as AVG.
• Km or mile: The user can choose betweenkm and mile.
• Intelligent battery level indication: With anoptimization algorithm, The user can define display mode of battery level as volt-age or percentage.
• Automatic light-sensitive lights: The head-light, taillight and display backlight will be automatically turned on/ off depending on lighting conditions.
• 5 levels off display backlighting: 10% is most dark, 100% is highest light.
• 6-Level-Support: setting power Levels 0 to 5.
• Trip distance indication: The maximumdistance displayed is 99999. Single-trip distances TRIP or the total distance TOTAL can be displayed.
• Two kind of riding mode: “ECO”/“SPORT”
• Intelligent display: including motor’s output power W for riding, output current A,
• Remaining miles RANGE, consumption of energy CALORIES.
• Set boot password: user can set boot pass-word by himself.
• Set parameters: Various parameters, e.g. power assistance level, wheel diameter, speed limit etc.can be set on the computer via a communication cable.
• Through the display, it can switch wheel diameter and speed limit.
